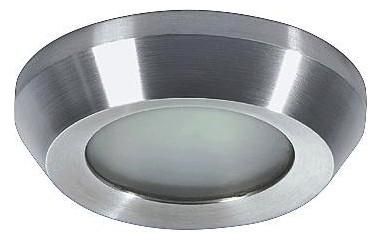

Recessed spotlight, chrome, round. Designed in a compact form for tool-free, quick installation for ceiling installation. Version: GX5.3, Installation type: recessed installation, Installation location: ceiling installation, Material: aluminum / glass, Protection type: according to DIN EN 60529: IP44*, Protection class: (EN 61140) III, Voltage: 12V, Power: 35W, Number of lamps / sockets: 1.0 pcs, Adjustability: pivoting, without control gear, Type of dimming: depends on the control gear.
| Property | Value |
| Max. System power: | 35 W |
| Housing color: | Chrome |
| Housing material: | Aluminum |
| Protection class (IP): | IP44 |
| Outer diameter: | 90 mm |
| Socket: | GX5.3 |
| Protection class: | III |
| With light source: | no |
| Installation height/depth: | 55 mm |
| With operating device: | no |
| Suitable for recessed installation: | yes |
| Height/depth: | 20 mm |
| With motion detector: | no |
| Nominal voltage: | 12 V |
| Suitable for lamp power: | 35 W |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | electronic transformer |
| Suitable for number of bulbs: | 1 |
| Cover material: | opal glass |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC/DC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for Surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming dependent on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light output: | direct |
Features
HAB
12V AC 35W chrome
Manufacturer
HAN
00218002
GTIN
4251433911197
Covering the luminaire with thermal insulation material possible
No
Outer diameter
90 mm
Operating device
Electronic transformer
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
55 mm
Version
GX5.3
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
35W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
Chrome
Height/Depth
20 mm
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Max. system performance
35W
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
Nominal voltage
12V
Brushed surface
No
Without dimming function
No
IP protection)
IP44
Protection class
III
Voltage type
AC/DC
Adjustability
Swiveling
Cover material
Glass opal
Housing material
Aluminum
