Description

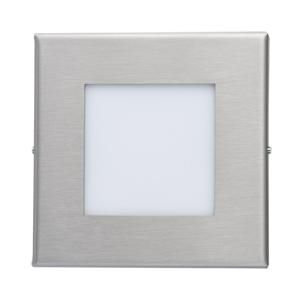

LED recessed wall light, stainless steel, square. Recessed mounting, wall mounting. Including converter for connection to 230 V mains voltage, switchable, and hollow wall mounting box Ø 68 mm / installation depth: 65 mm. Installation type: recessed mounting, installation location: wall mounting, material: stainless steel / acrylic / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 1.2W, number of lamps / sockets: 1.0 pcs, luminous flux: 20lm, color temperature: 3,000 K, with operating device, type of dimming: switchable.
| Property | Value |
| Cover material: | Opal plastic |
| With light source: | yes |
| Suitable for surface mounting: | no |
| With control gear: | yes |
| Light source: | LED not replaceable |
| Control gear: | LED control gear current-controlled |
| Housing color: | Stainless steel |
| Width: | 85 mm |
| Protection class (IP): | IP20 |
| Installation diameter: | 68 mm |
| Housing material: | stainless steel |
| Rated luminous flux according to IEC 62722-2-1: | 20 lm |
| Color rendering index CRI: | 80-89 |
| Light color: | blue |
| Nominal voltage: | 230 V |
| Voltage type: | AC |
| Suitable for number of bulbs: | 1 |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| DALI dimming: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| GPRS dimming: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Phase control dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Dimming dependent on operating device: | no |
| Without dimming function: | yes |
| Protection class: | I |
| Suitable for lamp power: | 1.2 W |
| Max. system power: | 1.2 W |
| Height/depth: | 85 mm |
| Installation height/depth: | 65 mm |
Features
HAB
10140208
Manufacturer
HAN
10140208
GTIN
4250047770732
Rated luminous flux according to IEC 62722-2-1
20lm
Operating device
LED control gear current controlled
Width
85 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
68 mm
Installation height/depth
65 mm
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for lamp power
1.2W
Suitable for number of lamps
1
Housing color
Stainless steel
Height/Depth
85 mm
Lamps
LED not replaceable
Light color
Blue
Max. system performance
1.2W
With operating device
Yes
With light source
Yes
Nominal voltage
230V
Without dimming function
Yes
IP protection)
IP20
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Stainless steel
