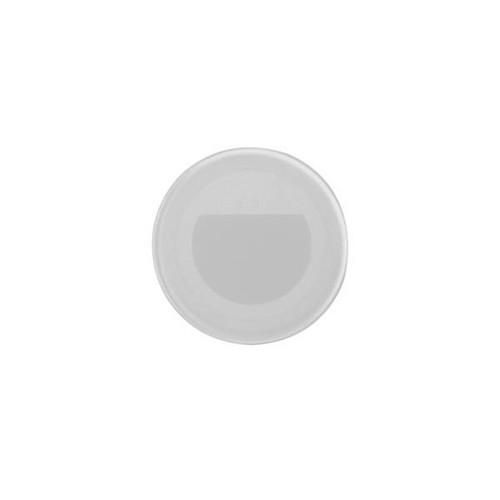

LED recessed wall light, for device boxes, white, round. Recessed mounting, wall mounting. For installation in hollow wall or concrete device boxes with an installation depth of at least 62 mm (screw spacing: 60 mm). Compatible with Kaiser device boxes for hollow wall installation, item no. 9064-02 or 9464-02, or concrete installation, item no. 1556-04. Attention: Delivery is WITHOUT device box. Mounting type: built-in mounting, mounting location: wall mounting, material: aluminum / steel / glass / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 1.5W, number of lamps / sockets: 1.0 pcs, luminous flux: 35lm, color temperature: 3,000 K, light color: white, with operating device, type of dimming: switchable.
| Property | Value |
| Max. System power: | 1.5 W |
| Rated luminous flux according to IEC 62722-2-1: | 35 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 9 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Outer diameter: | 78 mm |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | Opal glass |
| Installation height/depth: | 65 mm |
| Without dimming function: | yes |
| Light distribution: | asymmetrical |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Installation diameter: | 68 mm |
| Cover of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on Operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Suitable for lamp power: | 1.5 W |
| Luminaire luminous efficacy: | 23.33 lm/W |
