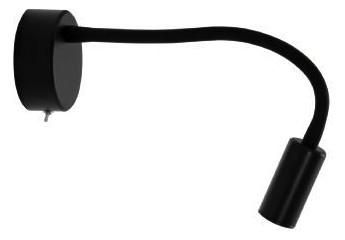

LED surface-mounted reading light, with cylinder head, black, round. Compact design for harmonious implementation in harmonious, architectural room concepts. Incl. integrated on/off switch, dimensions of surface-mounted housing: diameter 76 mm, height 29 mm, flexible arm length: 250 mm, cylinder diameter: 30 mm, mounting type: surface-mounted, mounting location: wall-mounted, material: aluminum/steel, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 4.2W, number of lamps/sockets: 1.0 pcs, luminous flux: 290 lm, color temperature: 3,000 K, light color: white, beam angle: 41°, adjustability: head-adjustable, with operating device: yes, dimmable: no, type of dimming: switchable.
| Property | Value |
| Max. System power: | 4.2 W |
| Rated luminous flux according to IEC 62722-2-1: | 290 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 29 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Nominal voltage: | 230 V |
| Housing color: | black |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Outer diameter: | 76 mm |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | transparent glass |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Suitable for lamp power: | 4.2 W |
| Luminous efficacy: | 69.05 lm/W |
