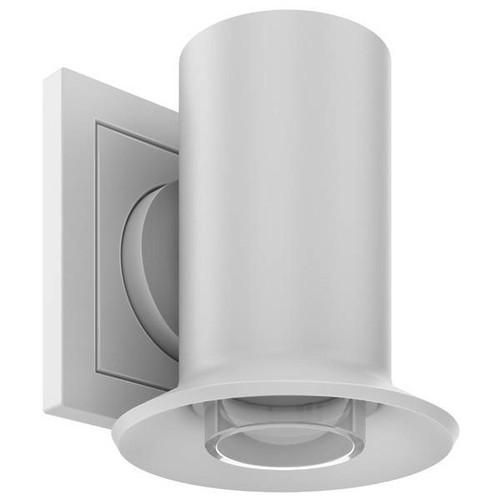

Plug & Light LED wall-mounted light, structured white, other. Compact design for harmonious implementation in harmonious, architectural room concepts. Attention: only to be used in combination with the Plug & Light system from GIRA and JUNG. Dimming function can be accessed via corresponding components from GIRA or JUNG. Installation type: surface-mounted, installation location: wall-mounted, material: aluminum / glass, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V, power: 4W, number of lamps / sockets: 1.0 pcs, luminous flux: 200 lm, color temperature: 3,000 K, beam angle: 35°, type of dimming: other.
| Property | Value |
| Max. System power: | 4 W |
| Rated luminous flux according to IEC 62722-2-1: | 200 lm |
| Suitable for number of lamps: | 1 |
| Length: | 82 mm |
| Width: | 82 mm |
| Height/depth: | 90 mm |
| Protection rating (IP): | IP20 |
| Protection class: | III |
| Nominal voltage: | 12 V |
| Housing color: | white |
| Material of the housing: | aluminum |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Voltage type: | DC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Cover material: | Structured plastic |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for light strip configuration: | no |
| Suitable for pendulum suspension: | no |
| Suitable for surface mounting: | yes |
| Grid design: | without |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| 0-10 V dimming: | no |
| GPRS dimming: | no |
| 1-10 V dimming: | no |
| Dimming manufacturer-specific: | no |
| DALI dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Suitable for lamp power: | 4 W |
| Luminaire luminous efficacy: | 50 lm/W |
Features
Manufacturer
HAN
10703173
GTIN
4251433922759
Execution of the grid
Without
Beam angle
Medium beam 21-40°
Rated luminous flux according to IEC 62722-2-1
200lm
Width
82 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for lamp power
4W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
White
Height/Depth
90 mm
Luminaire luminous efficacy
50lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Length
82 mm
Max. system performance
4W
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
12V
Without dimming function
No
IP protection)
IP20
Protection class
III
Voltage type
DC
Cover material
Plastic structured
Housing material
Aluminum
