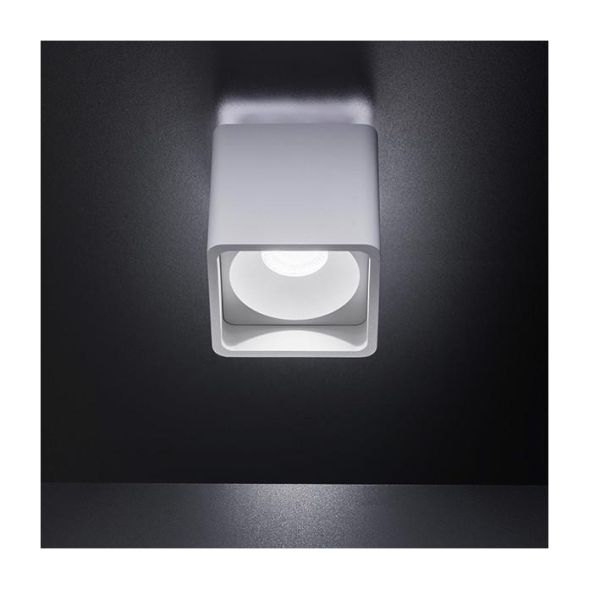

LED surface-mounted downlight QUBIC, white, square. Compact design for harmonious implementation in harmonious, architectural room concepts. LED ceiling surface-mounted downlight with 9.5 W / 930 lm direct and 1.5 W / 150 lm indirect light component. . Socket: without, mounting type: surface-mounted, mounting location: ceiling mounting, material: aluminum / plastic, protection class: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 11 W, number of lamps / sockets: 1.0 pcs, luminous flux: 1080.0 lm, light color: 3000 K, light color: white, beam angle: 60.0 °, with operating device: yes, white, clear plastic LED surface-mounted downlight, 11W, 1LED, 3000K, 1080lm, white, aluminum, matt, electronic transformer, IP20,
| Property | Value |
| Max. System power: | 14.5 W |
| Rated luminous flux according to IEC 62722-2-1: | 1130 lm |
| Suitable for number of lamps: | 1 |
| Length: | 100 mm |
| Width: | 100 mm |
| Height/depth: | 111 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Cover material: | transparent glass |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push-button: | no |
| Dimming depending on the operating device: | no |
| Suitable for lamp power: | 14.5 W |
| Luminaire luminous efficacy: | 77.93 lm/W |
Features
Manufacturer
HAN
12040173
GTIN
4250047798606
Execution of the grid
Without
Beam angle
Medium beam 21-40°
Rated luminous flux according to IEC 62722-2-1
1130lm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
100 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
14.5W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
111 mm
Luminaire luminous efficacy
77.93lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Length
100 mm
Max. system performance
14.5W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
230V
Without dimming function
Yes
IP protection)
IP20
Protection class
I
Voltage type
AC
Cover material
Glass transparent
Housing material
Aluminum
