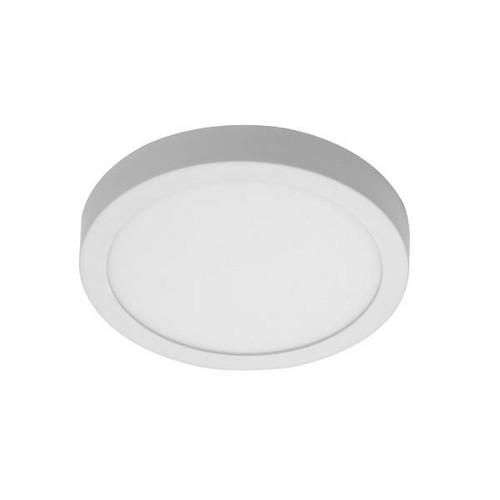

LED surface-mounted panel Flat37, white, round. Compact design for harmonious implementation in harmonious, architectural room concepts. . Socket: without, mounting type: surface-mounted, installation location: ceiling mounting, material: aluminum / plastic, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 24W, number of lamps / sockets: 1.0 pcs, luminous flux: 1,630lm, color temperature: 3000K, beam angle: 100°, adjustability: not adjustable, with control gear, type of dimming: switchable.
| Property | Value |
| Max. System power: | 24 W |
| Rated luminous flux according to IEC 62722-2-1: | 2020 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 240 mm |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With control gear: | yes |
| Suitable for recessed mounting: | no |
| Height/depth: | 37 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 24 W |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | without |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 2020 lm |
| Cover material: | Opal plastic |
| Voltage type: | AC |
| Light color: | white |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendant suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depends on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming Phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light emission: | direct |
| Type of wiring: | suitable for through wiring |
Features
HAB
12246 230V AC 24W white 3000K
Manufacturer
HAN
12246073
GTIN
4251433925842
Type of wiring
Suitable for through wiring
Beam angle
Wide beam 41-80°
Outer diameter
240 mm
Rated luminous flux according to IEC 62722-2-1
2020 lm
Operating device
LED control gear current controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for lamp power
24W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for truss mounting
No
Housing color
White
Height/Depth
37 mm
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
2020 lm
Light distribution
Symmetrical
Max. system performance
24W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Brushed surface
No
Without dimming function
Yes
Reflector
Without
IP protection)
IP20
Protection class
I
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
