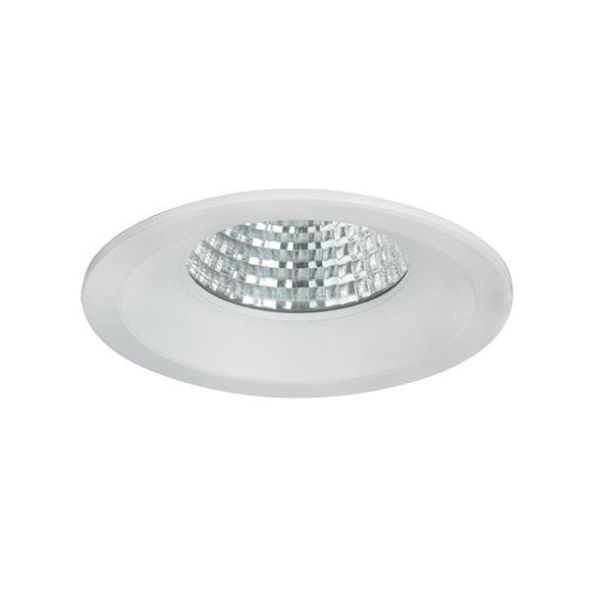

LED recessed downlight 700mA, 7W, 3000K, white LED ceiling recessed downlight with clear glass, round, beam angle 30°, equipped with 1 x high-performance LED for use in the area of general or accent lighting, installation in hollow ceilings with spring fastening, with BRUMBERG plug connection 700 mA (plug & play, series connection), LED light source emitting downwards, with aluminum facet reflector. Not suitable for covering with thermal insulation material. Not suitable for installation in device / mounting boxes. This luminaire contains built-in LED lamps. The lamps cannot be replaced in the luminaire. Energy efficiency class A++ to A.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 630 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 92 mm |
| Socket: | other |
| Light source: | LED not replaceable |
| Protection class: | III |
| With light source: | yes |
| Installation height/depth: | 62 mm |
| With control gear: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 3 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Suitable for lamp power: | 7 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for Ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | high-gloss |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 630 lm |
| Cover material: | transparent glass |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | DC |
| Light color: | white |
| Suitable for Busbar mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| LED nominal current at constant current: | 700 mA |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Luminaire luminous efficacy: | 90 lm/W |
Features
Manufacturer
HAN
12520073
GTIN
4251433915010
Covering the luminaire with thermal insulation material possible
No
Beam angle
Medium beam 21-40°
Outer diameter
92 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
630lm
Operating device
LED control gear current controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
62 mm
Color temperature
3000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
7W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Height/Depth
3 mm
LED nominal current at constant current
700mA
Luminaire luminous efficacy
90lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
630lm
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Brushed surface
No
Without dimming function
No
Reflector
High gloss
IP protection)
IP20
Protection class
III
Voltage type
DC
Adjustability
Not adjustable
Cover material
Glass transparent
Housing material
Aluminum
