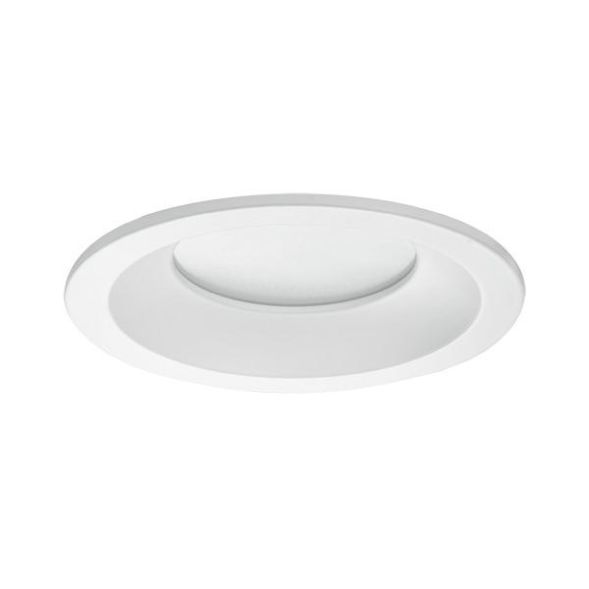

LED recessed downlight, white, round. Designed in a compact shape for tool-free, quick installation for ceiling installation. Version: Plug&Play, Installation type: Recessed installation, Installation location: Ceiling installation, Material: Aluminum / PMMA, Protection class on the room side: according to DIN EN 60529: IP20, Protection class: (EN 61140) III, Power: 12W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 960 lm, Color temperature: 3,000 K, Beam angle: 95°, Adjustability: not adjustable, With control gear: No, Dimmable: Depends on control gear, Type of dimming: Depends on control gear.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 960 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 136 mm |
| Socket: | other |
| Light source: | LED not replaceable |
| Protection class: | III |
| With light source: | yes |
| Installation height/depth: | 50 mm |
| With control gear: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 4 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Suitable for lamp power: | 12 W |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | without |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 960 lm |
| Cover material: | opal plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | DC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| LED nominal current at constant current: | 350 mA |
| Dimming dependent on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push button: | no |
| Without dimming function: | no |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Luminaire luminous efficacy: | 80 lm/W |
Features
Manufacturer
HAN
12527073
GTIN
4251433915072
Covering the luminaire with thermal insulation material possible
No
Outer diameter
136 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
960lm
Operating device
LED control gear current controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
50 mm
Color temperature
3000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
12W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Height/Depth
4 mm
LED nominal current at constant current
350mA
Luminaire luminous efficacy
80lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
960lm
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Brushed surface
No
Without dimming function
No
Reflector
Without
IP protection)
IP20
Protection class
III
Voltage type
DC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
