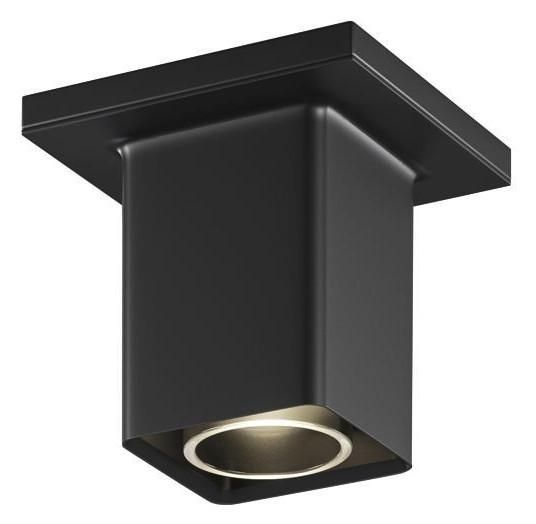

Plug & Light LED ceiling surface-mounted light, structural black, rectangular. Compact design for harmonious implementation in harmonious, architectural room concepts. Attention: only to be used in combination with the Plug & Light system from GIRA and JUNG. Dimming function can be accessed via corresponding components from GIRA or JUNG. Installation type: surface-mounted, installation location: ceiling mounting, material: aluminum / glass, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V, power: 8W, number of lamps / sockets: 1.0 pcs, luminous flux: 400 lm, color temperature: 3,000 K, beam angle: 35°, type of dimming: other.
| Property | Value |
| Max. System power: | 8 W |
| Rated luminous flux according to IEC 62722-2-1: | 400 lm |
| Suitable for number of lamps: | 1 |
| Length: | 45 mm |
| Width: | 45 mm |
| Height/depth: | 80 mm |
| Protection rating (IP): | IP20 |
| Protection class: | III |
| Nominal voltage: | 12 V |
| Housing color: | black |
| Material of the housing: | aluminum |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Voltage type: | DC |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Cover material: | Structured plastic |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on the operating device: | yes |
| Suitable for lamp power: | 8 W |
| Luminous efficacy: | 50 lm/W |
Features
HAB
P&L DL 8W 3000K str.-black
Manufacturer
HAN
12701183
GTIN
4251433923411
Execution of the grid
Without
Beam angle
Medium beam 21-40°
Rated luminous flux according to IEC 62722-2-1
400lm
Suitable for computer workstations according to EN 12464-1
Yes
Width
45 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
8W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
Black
Height/Depth
80 mm
Luminaire luminous efficacy
50lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Length
45 mm
Max. system performance
8W
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
12V
Without dimming function
No
IP protection)
IP20
Protection class
III
Voltage type
DC
Cover material
Plastic structured
Housing material
Aluminum
