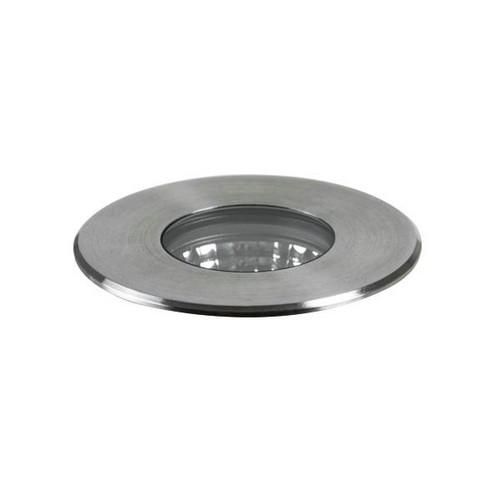

LED recessed floor light, V4A, IP67, stainless steel, round. Recessed mounting, floor mounting Mounting type: Recessed mounting, Installation location: Floor mounting, Material: Stainless steel V4A / aluminum / glass, Protection class on the room side: according to DIN EN 60529: IP67, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 6W, Number of lamps / sockets: 1.0 pcs, Luminous flux: 485 lm, Color temperature: 3,000 K, Beam angle: 36°, With operating device: No, Type of dimming: switchable.
| Property | Value |
| Nominal voltage: | 230 V |
| With light source: | yes |
| With control gear: | yes |
| Installation diameter: | 53 mm |
| Housing color: | stainless steel |
| Control gear: | LED control gear voltage controlled |
| Outer diameter: | 65 mm |
| Light source: | LED not replaceable |
| Suitable for number of light sources: | 1 |
| Protection class (IP): | IP67 |
| Protection class: | I |
| Cover material: | transparent glass |
| Adjustable: | no |
| Light distribution: | symmetrical |
| Roll-over: | no |
| Rated luminous flux according to IEC 62722-2-1: | 485 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Light color: | white |
| Max. load: | 500 kg |
| Voltage type: | AC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push button: | no |
| Without dimming function: | yes |
| Beam angle: | medium beam 21-40° |
| Suitable for lamp power: | 6 W |
| Max. system power: | 6 W |
| Installation height/depth: | 110 mm |
Features
HAB
14052 230V 6W 3000K
Manufacturer
HAN
14052223
GTIN
4251433926238
Beam angle
Medium beam 21-40°
Outer diameter
65 mm
Rated luminous flux according to IEC 62722-2-1
485lm
Operating device
LED control gear voltage controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
53 mm
Installation height/depth
110 mm
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for lamp power
6W
Suitable for number of lamps
1
Housing color
Stainless steel
Adjustable
No
Lamps
LED not replaceable
Light color
White
Light distribution
Symmetrical
Max. load
500 kg
Max. system performance
6W
With operating device
Yes
With light source
Yes
Nominal voltage
230V
Without dimming function
Yes
IP protection)
IP67
Protection class
I
Voltage type
AC
Cover material
Glass transparent
Rollover
No
