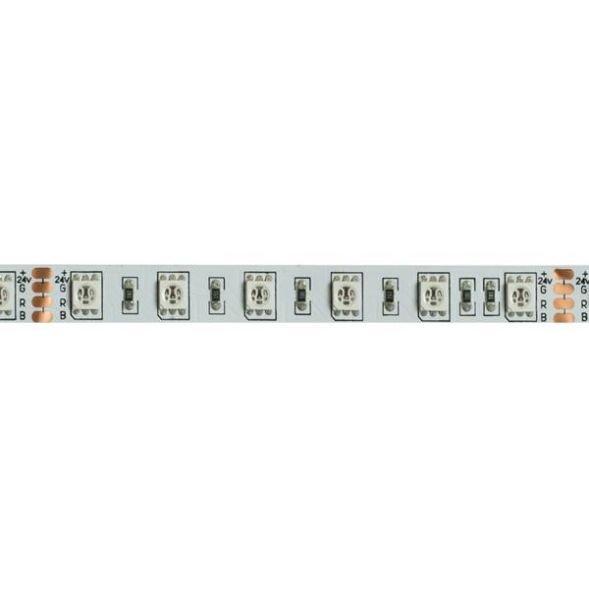

LED flex board RGB, 5 m, 14.4 W / m, IP00, RGB, LED flex board for decorative, technical and efficient lighting of light coves, linear applications and backlighting, basic or general lighting of rooms, architectural applications and for areas in which high illumination is desired, such as indirect or direct lighting, light ceilings, restaurant lighting and much more. Length: 5000.0 mm Lamp power per meter: 14.4 W / m, Protection class on the room side: IP00, Protection class: III, Voltage: 24V DC, Beam angle: 120.0 °, 60 LEDs per meter, Chip spacing (short pitch): 16.7 mm. For individual applications, the LED flex board can be shortened every 100 mm. The maximum system length of 5,000 mm must not be exceeded with one feed.
| Property | Value |
| Lamp power per meter: | 14.4 W |
| Length of individual sections: | 100 mm |
| Number of lamps per meter: | 60 |
| Smallest bending radius: | 25 mm |
| Width: | 10 mm |
| Length: | 5000 mm |
| Beam angle: | 120 ° |
| Design: | Band |
| Lamp: | LED not replaceable |
| Protection class (IP): | IP00 |
| Self-adhesive: | yes |
| Voltage type: | DC |
| Lamp voltage: | 24 V |
| Operating device: | LED operating device voltage controlled |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class: | III |
| Light color: | RGB |
| Height/depth: | 2.2 mm |
| Number of poles: | 4 |
Features
Manufacturer
HAN
15203001
GTIN
4250047799962
Number of lamps per meter
60
Version
Tape
Beam angle
120°
Rated lifetime L70/B50 at 25 °C
50000 hours
Operating device
LED control gear voltage controlled
Width
10 mm
Height/Depth
2.2 mm
Smallest bending radius
25 mm
Lamp power per meter
14.4W
Lamp voltage
24V
Lamps
LED not replaceable
Light color
RGB
Length
5000 mm
Length of each section
100 mm
Number of poles
4
IP protection)
IP00
Protection class
III
Self-adhesive
Yes
Voltage type
DC
