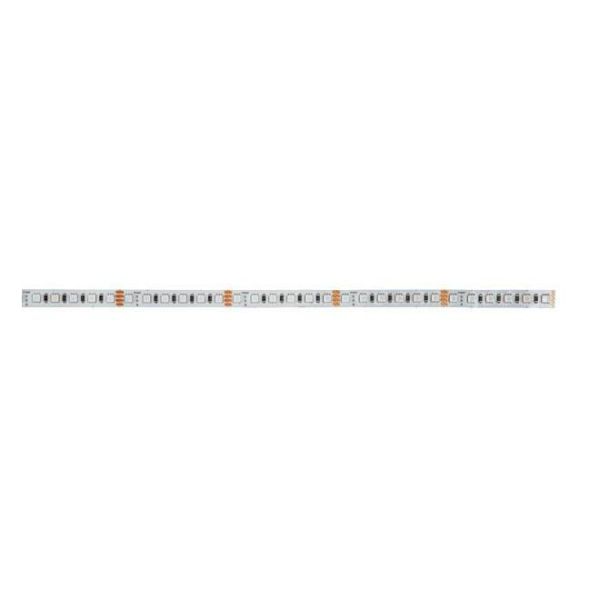

LED flex board RGB, 5 m, 14.4 W / m, IP67, RGB, LED flex board for decorative, technical and efficient lighting of light coves, linear applications and backlighting, basic or general lighting of rooms, architectural applications and for areas in which high illumination is desired, such as indirect or direct lighting, light ceilings, restaurant lighting and much more. Length: 5000.0 mm Lamp output per meter: 14.4 W / m, Protection class on the room side: IP67, Protection class: III, Voltage: 24V DC, Beam angle: 120.0 °, 120 LEDs per meter, Chip spacing (short pitch): 8.2 mm. For individual use, the LED flex board can be shortened every 50 mm. If the LED flex board is shortened, the IP protection must be restored on site. The maximum system length of 5,000 mm must not be exceeded with one feed.
| Property | Value |
| Lamp power per meter: | 14.4 W |
| Length of the individual sections: | 50 mm |
| Number of lamps per meter: | 120 |
| Smallest bending radius: | 40 mm |
| Width: | 11 mm |
| Length: | 5000 mm |
| Beam angle: | 120 ° |
| Design: | Band |
| Lamp: | LED not replaceable |
| Protection class (IP): | IP67 |
| Self-adhesive: | yes |
| Voltage type: | DC |
| Lamp voltage: | 24 V |
| Operating device: | LED operating device voltage controlled |
| Protection class: | III |
| Light color: | RGB |
| Height/depth: | 5 mm |
| Number of poles: | 4 |
