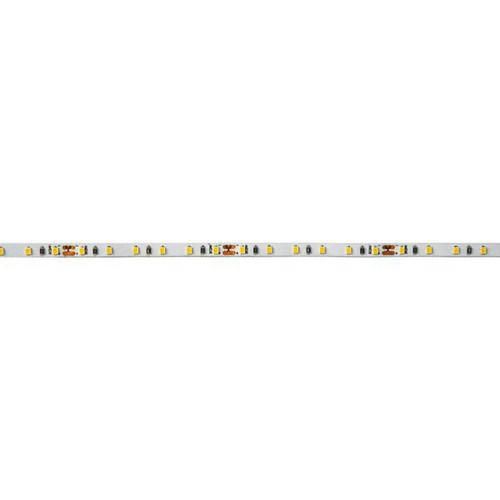

LED flex board Thin4, 5 m, CRI > 90, 7.2 W / m, IP00, LED white light, CRI > 90 LED flex board for decorative, technical and efficient lighting of light coves, linear applications and backlighting, basic or general lighting of rooms, architectural applications and for areas in which high illumination is desired, such as indirect or direct lighting, light ceilings, restaurant lighting and much more. Length: 5000.0 mm Lamp power per meter: 7.2 W / m, luminous flux per meter: 560.0 lm / m, protection class on the room side: IP00, protection class: III, voltage: 24V DC, beam angle: 120.0 °, 120 LEDs per meter, chip spacing (short pitch): 8.3 mm. The LED flex board can be shortened every 50 mm for individual applications. The maximum system length of 5,000 mm must not be exceeded with one feed.
| Property | Value |
| Lamp power per meter: | 7.2 W |
| Length of individual sections: | 50 mm |
| Number of lamps per meter: | 120 |
| Smallest bending radius: | 25 mm |
| Width: | 4 mm |
| Length: | 5000 mm |
| Beam angle: | 120 ° |
| Design: | Band |
| Color temperature: | 2700 K |
| Light source: | LED not replaceable |
| Protection class (IP): | IP00 |
| Self-adhesive: | yes |
| Voltage type: | DC |
| Luminous flux per meter: | 560 lm |
| Lamp voltage: | 24 V |
| Operating device: | LED operating device voltage controlled |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Protection class: | III |
| Light color: | white |
| Color rendering index CRI: | 90-100 |
| Height/depth: | 1.8 mm |
| Number of poles: | 2 |
