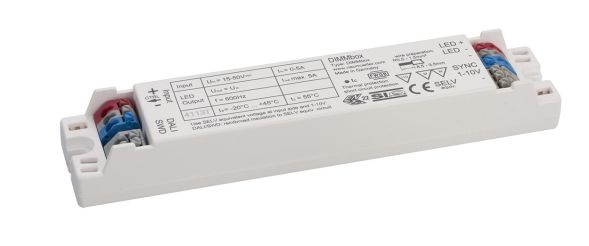

LED dimmer 24 V DC, DALI, 1-10 V, PUSH dimmable. Single-channel LED dimmer (single color) for constant voltage operation (24 V DC). Wiring is via plug-in terminals. Cable cross-section: 0.5 - 2.5 mm². An external power supply is required for operation. Output signal (dimming): PWM (pulse width modulation). With overload, short circuit, overtemperature and idle protection, max. output current: 5 A. The device can be controlled via DALI or a button (push dimm) or 1-10 V. To expand the performance, several devices can be operated as master / slave. Material: plastic, protection class: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 24V DC, power: 120W, type of dimming: DALI.
| Property | Value |
| Output power: | 0 to 120 W |
| Protection class (IP): | IP20 |
| Output voltage: | 24 V |
| Protection class: | II |
| Length: | 183 mm |
| Width: | 33 mm |
| Height: | 23 mm |
| Design: | dynamic |
| Housing: | plastic housing |
| Suitable for outdoor use: | no |
| Suitable for constant voltage: | yes |
| Suitable for constant current: | no |
| Suitable for direct voltage (primary side): | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | yes |
| Dimming DALI: | yes |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
Features
Suitable for constant current
No
Suitable for constant voltage
Yes
Output power
0 to 120 W
Suitable for direct voltage (primary side)
Yes
HAB
17502000
Manufacturer
HAN
17502000
GTIN
4250047782070
Version
Dynamic
Output voltage
24V
Width
33 mm
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Suitable for outdoor use
No
Housing
Plastic housing
Height
23 mm
Length
183 mm
Without dimming function
No
IP protection)
IP20
Protection class
II
