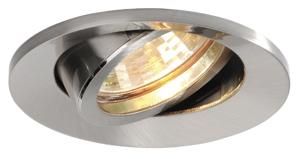

NV recessed spotlight 83mm max. 50W, chrome recessed spotlight round, without snap ring, one for all - one spotlight for a wide variety of light sources. With this spotlight you can use 6 different light sources (GX5.3 / GU10 / GZ10 / LED 12V DC / LED 350mA / LED 700mA), generally delivered WITHOUT socket!!! The corresponding socket with the bracket must be ordered separately, swivels 25°, fitting: 50W max., ceiling installation via tension spring. Not suitable for covering with thermal insulation material.
| Property | Value |
| Max. System power: | 50 W |
| Housing color: | Nickel |
| Housing material: | Aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 83 mm |
| Protection class: | III |
| With light source: | no |
| Installation height/depth: | 125 mm |
| With operating device: | no |
| Suitable for built-in installation: | yes |
| Height/depth: | 4 mm |
| With motion detector: | no |
| Nominal voltage: | 12 V |
| Suitable for lamp power: | 50 W |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | electronic transformer |
| Suitable for number of bulbs: | 1 |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depends on Operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Light emission: | direct |
Features
HAB
2110.15
Manufacturer
HAN
00211015
GTIN
4250047761730
Covering the luminaire with thermal insulation material possible
No
Outer diameter
83 mm
Operating device
Electronic transformer
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
125 mm
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
50W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for truss mounting
No
Housing color
Nickel
Height/Depth
4 mm
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Max. system performance
50W
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
Nominal voltage
12V
Brushed surface
No
Without dimming function
No
IP protection)
IP20
Protection class
III
Voltage type
AC
Adjustability
Swiveling
Housing material
Aluminum
