Description

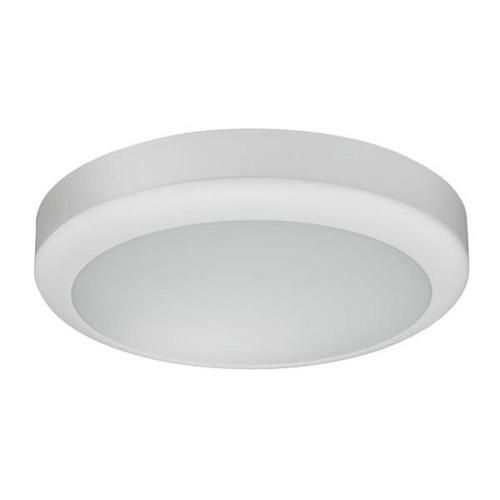

LED wall and ceiling surface-mounted light, IP65, switchable, white, round. Compact design for harmonious implementation in harmonious, architectural room concepts. Can be used as a wall or ceiling light. Mounting type: surface-mounted, Mounting location: ceiling mounting, Material: plastic/acrylic, Protection class on the room side: according to DIN EN 60529: IP65, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 15W, Number of bulbs/sockets: 1.0 pcs, Luminous flux: 1,200 lm, Color temperature: 3,000 K, Light color: white, Beam angle: 110°, with control gear, Type of dimming: switchable.
| Property | Value |
| Max. System power: | 15 W |
| Rated luminous flux according to IEC 62722-2-1: | 1200 lm |
| Suitable for number of lamps: | 1 |
| Height/depth: | 60 mm |
| Protection rating (IP): | IP65 |
| Protection class: | II |
| Nominal voltage: | 230 V |
| Housing color: | white |
| Housing material: | plastic |
| Color temperature: | 3000 K |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Suitable for wall mounting: | yes |
| Outer diameter: | 300 mm |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | yes |
| Light source: | LED not replaceable |
| With operating device: | yes |
| Material of the cover: | Plastic opal |
| Without dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for Surface mounting: | yes |
| Suitable for emergency lighting: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| 0-10 V dimming: | no |
| GPRS dimming: | no |
| 1-10 V dimming: | no |
| Manufacturer-specific dimming: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push button: | no |
| Dimming depending on operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Suitable for lamp power: | 15 W |
| Luminaire luminous efficacy: | 80 lm/W |
Features
HAB
230V AC 15W ws. ww
Manufacturer
HAN
32040073
GTIN
4251433928027
Outer diameter
300 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated luminous flux according to IEC 62722-2-1
1200lm
Operating device
LED control gear current controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for lamp power
15W
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
Yes
Housing color
White
Height/Depth
60 mm
Luminaire luminous efficacy
80lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Max. system performance
15W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Without dimming function
Yes
Impact resistance
IK08
IP protection)
IP65
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
