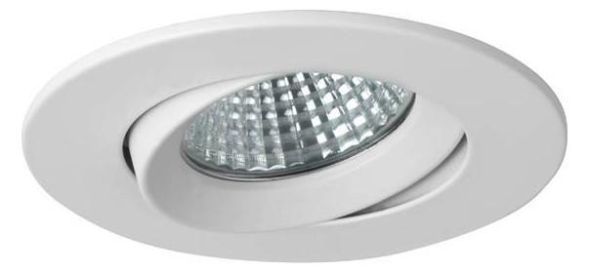

Recessed spotlight, GU10, nickel matt, round. Designed in a compact form for tool-free, quick installation for ceiling installation. Incl. bracket with GU10 socket for standard-compliant strain relief. Version: GU10, installation type: recessed installation, installation location: ceiling installation, material: aluminum, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V, power: 50W, number of lamps / sockets: 1.0 pcs, adjustability: pivoting, with control gear: no, type of dimming: other.
| Property | Value |
| Max. System power: | 50 W |
| Housing color: | Nickel |
| Housing material: | Aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 90 mm |
| Socket: | GU10 |
| Protection class: | II |
| With light source: | no |
| Installation height/depth: | 130 mm |
| With operating device: | no |
| Suitable for recessed installation: | yes |
| Height/depth: | 3 mm |
| With motion detector: | no |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 50 W |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Suitable for number of bulbs: | 1 |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Suitable for power rail mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depends on Operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in the device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Light emission: | direct |
Features
HAB
230V AC GU10 50W nickel ma
Manufacturer
HAN
36453150
GTIN
4251433949718
Covering the luminaire with thermal insulation material possible
No
Outer diameter
90 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
130 mm
Version
GU10
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
50W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
Nickel
Height/Depth
3 mm
Light emission
Direct
Light distribution
Symmetrical
Max. system performance
50W
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
Nominal voltage
230V
Brushed surface
No
Without dimming function
No
IP protection)
IP20
Protection class
II
Voltage type
AC
Adjustability
Swiveling
Housing material
Aluminum
