Description

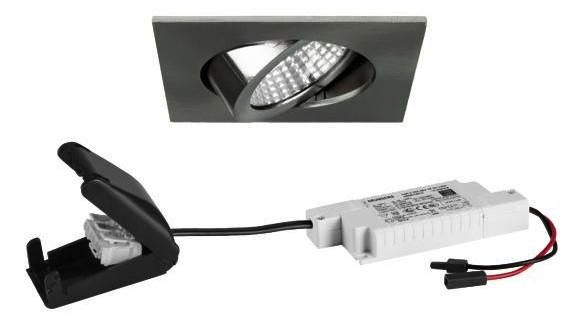

LED recessed spotlight set, trailing edge dimmable, with connection box, nickel matt, square. Designed in a compact design for tool-free, quick installation for ceiling installation. Set including converter for 230 V mains voltage, trailing edge dimmable, converter dimensions: L 110 x W 50 x H 19 mm, installation type: recessed installation, installation location: ceiling installation, material: aluminum / plastic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lamps / sockets: 1.0 pcs, luminous flux: 640 lm, color temperature: 3,000 K, light color: white, beam angle: 38°, adjustability: pivotable, with control gear: yes, type of dimming: trailing edge.
| Property | Value |
| Max. System power: | 6 W |
| Rated luminous flux according to IEC 62722-2-1: | 630 lm |
| Housing color: | Nickel |
| Housing material: | Aluminum |
| Protection class (IP): | IP20 |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 38 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 82 mm |
| Width: | 82 mm |
| Height/depth: | 2 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 6 W |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Reflector: | high-gloss |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 630 lm |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | yes |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light emission: | direct |
| Wiring type: | suitable for through wiring |
| Luminaire luminous efficacy: | 105 lm/W |
Features
HAB
39465153 230V AC 6W 3000K nickel m.
Manufacturer
HAN
39465153
GTIN
4251433936077
Covering the luminaire with thermal insulation material possible
No
Type of wiring
Suitable for through wiring
Beam angle
Medium beam 21-40°
Rated luminous flux according to IEC 62722-2-1
630lm
Operating device
LED control gear current controlled
Width
82 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
Yes
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
38 mm
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
6W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for truss mounting
No
Housing color
Nickel
Height/Depth
2 mm
Luminaire luminous efficacy
105lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
630lm
Light distribution
Symmetrical
Length
82 mm
Max. system performance
6W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Brushed surface
No
Without dimming function
No
Reflector
High gloss
IP protection)
IP20
Protection class
II
Voltage type
AC
Adjustability
Swiveling
Housing material
Aluminum
