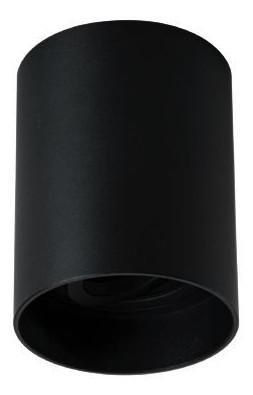

Mounting housing, round, recessed, flush with module holder, pivoting, structural black, round. Compact design for harmonious implementation in harmonious, architectural room concepts. All Brumberg MR16 LED modules can be used for the M1 mounting unit up to the maximum specified power. The LED module, the converter or power supply unit and, if applicable, the control unit are not included in the scope of delivery of the mounting unit. If you have any questions, we will be happy to help you select the converter that fits into the housing. Important: when using 24 V LED modules, the power supply unit and the control unit must always be housed outside the housing on site. Design: without socket, mounting type: surface mounting, installation location: ceiling mounting, material: aluminum, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) III, power: 8W, number of lamps / sockets: 1.0 pcs, adjustability: pivoting, without control gear, type of dimming: depends on the control gear.
| Property | Value |
| Housing color: | black |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 90 mm |
| Protection class: | III |
| With light source: | no |
| With operating device: | no |
| Suitable for recessed mounting: | no |
| Height/depth: | 115 mm |
| With Motion detector: | no |
| Suitable for lamp power: | 8 W |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | electronic transformer |
| Suitable for number of lamps: | 1 |
| Suitable for track mounting: | no |
| Adjustability: | rotatable and pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depends on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming Phase control: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push-button dimming: | no |
| Without dimming function: | no |
| Light emission: | direct |
