Description

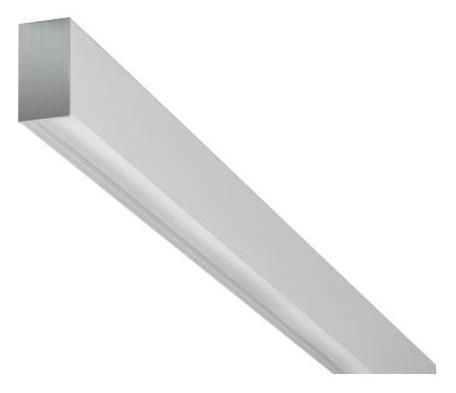

LED surface-mounted profile, silver, rectangular. Compact design for harmonious implementation in harmonious, architectural room concepts. Installation type: surface-mounted, installation location: ceiling mounting, material: aluminum / acrylic, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 31.4W, luminous flux: 2,430 lm, color temperature: 3,000 K, light color: white, beam angle: 80°, adjustability: not adjustable, with control gear: yes, type of dimming: DALI.
Property | Value |
Max. System power: | 31.4 W |
Rated luminous flux according to IEC 62722-2-1: | 2430 lm |
Length: | 1144 mm |
Width: | 40 mm |
Height/depth: | 75 mm |
Protection class (IP): | IP20 |
Protection class: | I |
Nominal voltage: | 230 V |
Housing color: | Silver |
Housing material: | Aluminum |
Color temperature: | 3000 K |
Color rendering index CRI: | 90-100 |
Suitable for ceiling mounting: | yes |
Suitable for wall mounting: | no |
Voltage type: | AC |
With motion detector: | no |
Beam angle: | wide beam 41-80° |
With light source: | yes |
Light source: | LED not replaceable |
With control gear: | yes |
Without dimming function: | no |
Light emission: | direct |
Light distribution: | symmetrical |
With light sensor: | no |
Operating device: | LED operating device voltage controlled |
Suitable for recessed mounting: | no |
Light color: | white |
Suitable for computer workstations in accordance with EN 12464-1: | yes |
Suitable for light strip configuration: | no |
Suitable for Pendulum suspension: | no |
Suitable for surface mounting: | yes |
DMX dimming: | no |
DSI dimming: | no |
LineSwitch dimming: | no |
Potentiometer dimming (integrated in the device): | no |
0-10 V dimming: | no |
GPRS dimming: | no |
1-10 V dimming: | no |
Manufacturer-specific dimming: | no |
Dimming DALI: | yes |
Dimming mains voltage modulation: | no |
Dimming trailing edge: | no |
Dimming leading edge: | no |
Dimming programmable: | no |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with Push button: | no |
Dimming depending on the operating device: | no |
Rated service life L70/B50 at 25 °C: | 60000 h |
Suitable for lamp power: | 31.4 W |
Luminaire luminous efficacy: | 77.39 lm/W |
Features
HAB
77143693 Profile 3000K
Manufacturer
HAN
77143693
GTIN
4251433935490
Beam angle
Wide beam 41-80°
Rated lifetime L70/B50 at 25 °C
60000 hours
Rated luminous flux according to IEC 62722-2-1
2430lm
Operating device
LED control gear voltage controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
40 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
90-100
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
31.4 W
Suitable for light strip configuration
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
Silver
Height/Depth
75 mm
Luminaire luminous efficacy
77.39lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
Length
1144 mm
Max. system performance
31.4 W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Without dimming function
No
IP protection)
IP20
Protection class
I
Voltage type
AC
Housing material
Aluminum
