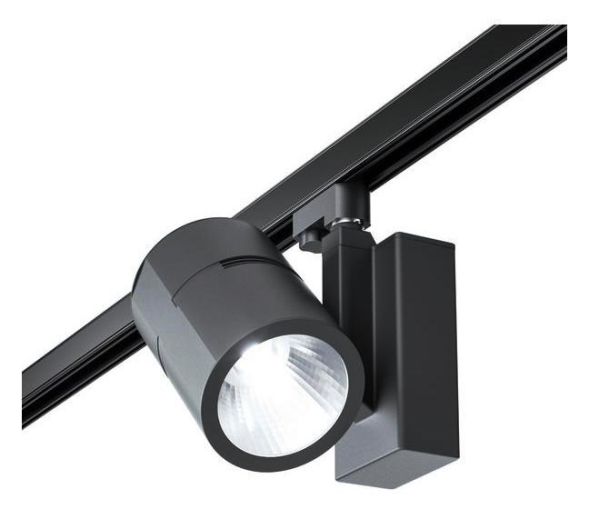

LED track spotlight 40 W with vertical converter, round. Compact design for harmonious implementation in harmonious, architectural room concepts. For optimal product presentation through uniform light image, suitable in all product range environments. Energy efficient and sales-promoting. The wide variety of variants results in a uniform, harmonious concept for holistic lighting. Installation type: surface mounting, installation location: ceiling mounting, material: aluminum, protection class on the room side: according to DIN EN 60529: IP20, protection class: (EN 61140) I, power: 40W, color temperature: 3,000 K, adjustability: rotatable and head adjustable, with operating device, type of dimming: DALI.
| Property | Value |
| Max. System power: | 40 W |
| Housing color: | black |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 126 mm |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Length: | 221 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 40 W |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Reflector: | high-gloss |
| Voltage type: | AC |
| Suitable for track mounting: | yes |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Type of Wiring: | Termination |
Features
HAB
40W 36° 3000K
Manufacturer
HAN
89020231
GTIN
4251433923855
Type of wiring
Diploma
Outer diameter
126 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for lamp power
40W
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
Yes
Suitable for truss mounting
No
Housing color
Black
Lamps
LED not replaceable
Light distribution
Symmetrical
Length
221 mm
Max. system performance
40W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Brushed surface
No
Without dimming function
No
Reflector
High gloss
IP protection)
IP20
Protection class
I
Voltage type
AC
Housing material
Aluminum
