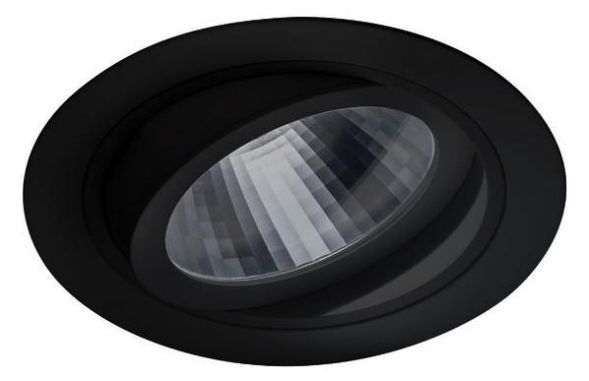

LED recessed spotlight, black, round. Designed in a compact design for quick, tool-free installation in the ceiling. For optimal product presentation through uniform light, suitable in all product range environments. Energy efficient and sales-promoting. The wide variety of variants results in a uniform, harmonious concept for holistic lighting. Installation type: recessed installation, installation location: ceiling installation, material: aluminum, protection type: according to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 40W, number of lamps / sockets: 1.0 pcs, luminous flux: 4,189lm, color temperature: 2700 K, light color: white, adjustability: rotatable and pivotable, with control gear, type of dimming: switchable.
| Property | Value |
| Max. System power: | 40 W |
| Rated luminous flux according to IEC 62722-2-1: | 4189 lm |
| Housing color: | black |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 180 mm |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 172 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| With motion detector: | no |
| Color temperature: | 2700 K |
| Nominal voltage: | 230 V |
| Suitable for lamp power: | 40 W |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Control gear: | LED control gear, current-controlled |
| Reflector: | high gloss |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 4189 lm |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | rotatable and pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendant suspension: | no |
| Suitable for Pedestal/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light emission: | direct |
| Luminous efficacy: | 104.72 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
Features
HAB
40W 36° 2700 black
Manufacturer
HAN
89049427
GTIN
4251433948643
Outer diameter
180 mm
Rated luminous flux according to IEC 62722-2-1
4189lm
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
172 mm
Color temperature
2700K
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for lamp power
40W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
Black
Luminaire luminous efficacy
104.72lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
4189lm
Light distribution
Symmetrical
Max. system performance
40W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Brushed surface
No
Without dimming function
Yes
Reflector
High gloss
IP protection)
IP20
Protection class
II
Voltage type
AC
Adjustability
Rotatable and pivotable
Housing material
Aluminum
