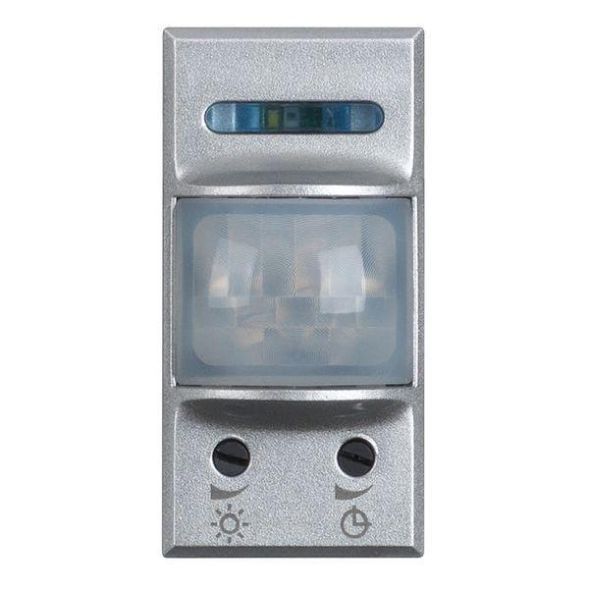

Passive infrared motion detector for the AXOLUTE switch range, 3-wire connection, 1 module, colour: aluminium
| Property | Value |
| Depth: | 47 mm |
| Width: | 22 mm |
| Height: | 51 mm |
| Design: | motion detector |
| Color: | gray |
| Nominal voltage: | 230 V |
| Material: | plastic |
| Mounting type: | flush-mounted |
| Voltage type: | AC |
| Max. Range to one side: | 6 m |
| Min. duty cycle: | 30 s |
| Max. duty cycle: | 600 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | 5 to 40 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range frontal: | 6 m |
| Max. Inrush current: | 2 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 120 m |
| Surface finish: | glossy |
| Surface: | other |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 6 m |
| Detection angle horizontal: | -30 to 2 ° |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote control: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Antibacterial treatment: | no |
Features
Bridging switch
No
With signal unit
No
Forced shutdown
No
Max. inrush current
2 A
Manufacturer
HAN
HC4431N
GTIN
8005543615409
Dimming function with dimming insert
No
Alarm function
No
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Glittering
Width
22 mm
Detection field diameter on floor
6m
Detection angle horizontal
-30 to 2 °
Color
Remote controllable
No
Frequency
50 to 60 Hz
Suitable for C-load
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
51 mm
Constant light control
Yes
Max. duty cycle
600 min
Max. range frontal
6m
Max. range to one side
6m
Min. duty cycle
30s
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Extension input
No
Nominal voltage
230V
Surface
Other
Optimal mounting height
120m
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
No
Temperature
5 to 40 °C
Depth
47 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
Yes
Material
Plastic
Material quality
Thermoplastic
