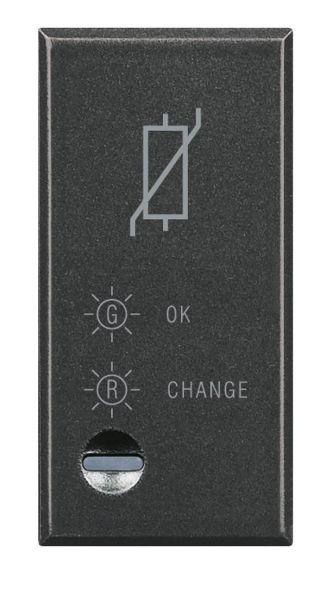

Surge arrester/fine protection for a single socket, 1-pole - nominal leakage current In = 1 kA - max. leakage current Imax. = 2 kA - max. leakage voltage Up = 1 kV - nominal voltage Un = 110 - 230 V ac - max. continuous voltage Uc = 250 V ac, color: anthracite
| Property | Value |
| Protection level: | 1 kV |
| Nominal voltage AC: | 230 V |
| Maximum continuous voltage AC: | 250 V |
| Mounting type: | Module |
| With remote signaling contact: | no |
| Nominal discharge current (8/20) (LN): | 1 kA |
| Total discharge current (8/20) (L+N-PE): | 2 kA |
| Nominal load current: | 16 A |
| Number of poles: | 1 |
| Signaling on the device: | optical |
| Test class type 3: | no |
| With interference filter: | no |
| Max. conductor cross-section rigid (single/multi-wire): | 2.5 mm² |
| Max. conductor cross-section flexible (fine-stranded): | 2.5 mm² |
| Protection class (IP): | IP20 |
Features
Max. conductor cross-section rigid (single/multi-wire)
2.5 mm²
Max. conductor cross-section flexible (fine-stranded)
2.5 mm²
Protection level
1 kV
With remote signaling contact
No
Nominal load current
16 A
Manufacturer
HAN
HS4536
GTIN
8012199763071
Highest continuous voltage AC
250V
Mounting type
Module
Nominal voltage AC
230V
Number of poles
1
IP protection)
IP20
Signaling on the device
Optical
