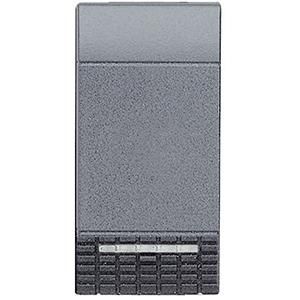

Button 2-pole normally open, color: anthracite
| Property | Value |
| Color: | anthracite |
| Design: | Single button |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Push button |
| Mounting type: | Modular carrier |
| Number of rocker switches: | 1 |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Modular device for installation switch programs |
| Feedback contact: | no |
| With lighting: | yes |
| Mounting type: | snap in |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 7016 |
| Nominal voltage: | 250 V |
| Number of modules (with modular design): | 1 |
| Print: | other |
| Rated current: | 10 A |
| Device width: | 22 mm |
| Device height: | 44 mm |
| Device depth: | 38 mm |
| Number of poles: | 2 |
| Transparent: | no |
| Antibacterial treatment: | no |
| With signal lamp: | yes |
| Min. depth of device box: | 40 mm |
Features
Feedback contact
No
Number of actuating rockers
1
With lighting
Yes
Manufacturer
HAN
L4044N
GTIN
8005543419465
Antibacterial treatment
No
Number of modules (for modular construction)
1
Imprint
Other
Version
Surface finish
Frosted
Operating mode
Push button
Mounting type
Snap into place
Rated current
10A
Color
Suitable for protection class (IP)
IP20
Device width
22 mm
Device height
44 mm
Device depth
38 mm
Halogen free
Yes
Min. depth of the device box
40 mm
With signal lamp
Yes
Mounting type
Module carrier
Nominal voltage
250V
Surface
Untreated
Number of poles
2
RAL number (similar)
7016
Text field/label area
No
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Modular device for installation switch programs
