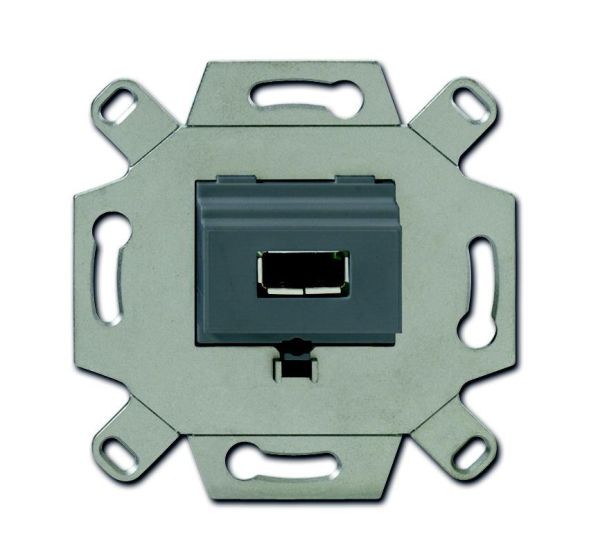

USB connection box, grey, flush-mounted installation boxes and inserts, inserts for multimedia/communication adapters, USB connection box with screw terminals and strain relief. Suitable for TAE central plates 2539-21x and 1766-xxx. For connecting mobile devices, such as computer accessories (printers, scanners, USB sticks, etc.) or digital cameras. USB socket type: Type A, USB 2.0 capable. For connecting 5-wire USB cables. For installation in cable ducts, flush-mounted device boxes and underfloor systems. For easy installation, while observing the permissible bending radii, the use of the Kaiser Electronic box, item no. 1068-02 or 9062-74 is recommended. Without central plate. Without spreader. Protection class device: IP 20 Installation depth: 34 mm
| Property | Value |
| Mounting type: | Mounting with screw |
| Color: | gray |
| RAL number (similar): | 7005 |
| Device height: | 34 mm |
| Device width: | 71 mm |
| Device depth: | 71 mm |
| Label field: | without label field |
| Use: | USB |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | other |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | Base element |
| Support ring: | yes |
| With print: | no |
| Material: | metal |
| Material quality: | other |
| Halogen-free: | yes |
| Surface finish: | matt |
| With strain relief: | yes |
| Lustre terminal: | no |
| Number of modules (with modular design): | 1 |
| Transparent: | no |
| Outlet direction: | straight |
| With sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 1 |
| Sockets shielded: | no |
| Housing shielded: | no |
| Min. depth of the device box: | 34 mm |
