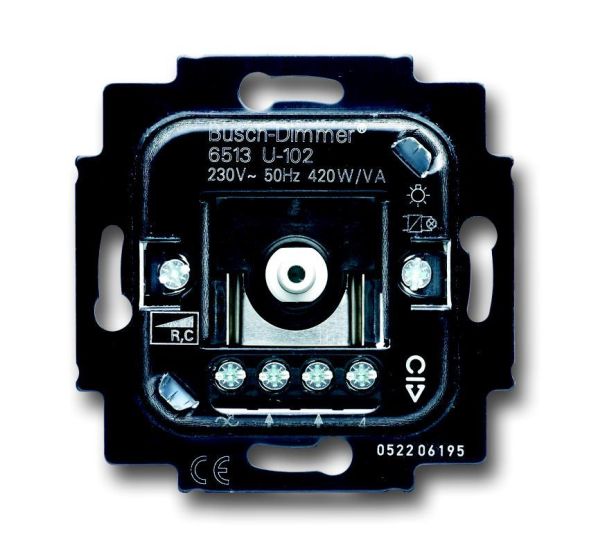

Busch rotary dimmer, flush-mounted installation boxes and inserts, inserts for Busch dimmers, Busch rotary dimmer flush-mounted, RC, 40-420 W With rotary operation, pressure sequence changeover switch and soft latching, with phase cut-off. For incandescent lamps, 230 V halogen lamps and low-voltage halogen lamps with electronic transformers. Low noise, short-circuit proof, overload proof. Without central plate. Nominal voltage: , +10 % / -10 % Nominal frequency: 50 Hz Nominal power: 40 - 420 W/VA IEC 60669-2-1, British Standard EN 60669-2-1
| Property | Value |
| Device height: | 71 mm |
| Device width: | 71 mm |
| Device depth: | 32 mm |
| Connection type: | Screw terminal |
| Wire cross section: | 0.75 mm² |
| Rated power: | 40 VA |
| Mounting type: | Flush-mounted |
| Phase control dimming: | no |
| Phase control dimming: | yes |
| Rated voltage: | 207 V |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Operation type: | Rotary/push button |
| Halogen-free: | yes |
| Composition: | Basic element |
| Load type: | capacitive load |
| Series dimmer: | no |
| Extension input: | yes |
| Light value memory: | yes |
| Can be used with button: | no |
| Can be used with Motion detector: | no |
| Can be used with presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Frequency: | 50 Hz |
| Control voltage: | 220 V |
| Transparent: | no |
| App control via Bluetooth: | no |
| Impact resistance: | IK00 |
| Min. depth of the device box: | 32 mm |
Enhance your home’s lighting system with the Busch-Jaeger 6513 U-102 Rotary Dimmer. Designed for modern spaces, this high-quality dimmer provides smooth control of incandescent and halogen lamps, supporting a power range from 40 to 420 watts. Its sleek design integrates seamlessly into any standard flush-mounted setup, making it perfect for residential or commercial installations.
Key Features:
- Smooth Dimming: The rotary control ensures easy and precise light adjustment, offering optimal brightness for any atmosphere, from cozy evening settings to focused task lighting.
- Wide Compatibility: This dimmer is ideal for both incandescent and halogen lamps, providing reliable performance for various lighting systems.
- Efficient Design: With an integrated switch function, you can conveniently turn the lights on or off without affecting the brightness settings.
- Compact & Elegant: The minimalist design of the Busch-Jaeger 6513 U-102 blends effortlessly with any interior décor, adding a touch of modern elegance to your space.
Energy Efficiency: This dimmer helps optimize energy consumption by allowing you to control the light output, reducing unnecessary energy use. It’s an eco-friendly solution that not only improves comfort but also contributes to long-term savings.
Easy Installation:
The Busch-Jaeger dimmer is designed for easy installation in standard flush-mounting boxes, making it a hassle-free upgrade for your lighting system. Whether you’re renovating or setting up a new space, this product is both functional and aesthetically pleasing.
