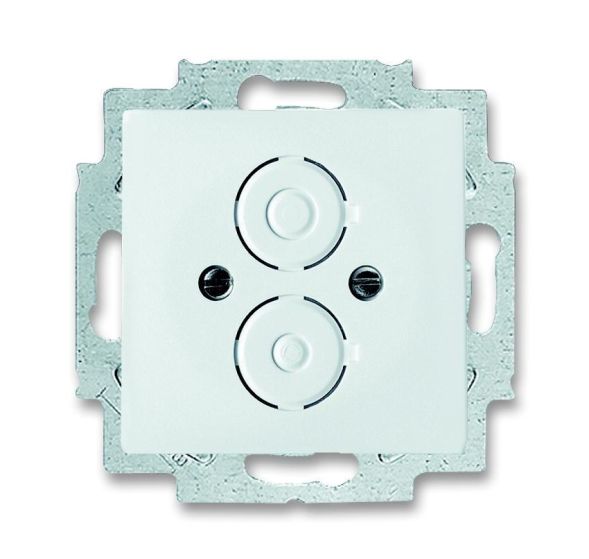

Central plate, studio white, carat, covers for data communication, central plate with support ring for covering small sockets and round connectors with screw cap M 16x0.75 (can be installed in base insert) in accordance with DIN 41524, 41529, 45322, 45327, 45328 and 45329. Breakout openings 6, 8, 18 mm. Device protection class: IP 20
| Property | Value |
| Mounting type: | Claw/screw fastening |
| Color: | white |
| RAL number (similar): | 9016 |
| Device height: | 71 mm |
| Device width: | 71 mm |
| Device depth: | 32 mm |
| Labeling field: | without labeling field |
| Use: | for data connection housing |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | untreated |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | Control element |
| Support ring: | yes |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Version of the Surface: | glossy |
| With strain relief: | no |
| Lustre terminal: | no |
| Number of modules (with modular design): | 1 |
| Transparent: | no |
| Outlet direction: | straight |
| With sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 2 |
| Sockets shielded: | no |
| Housing shielded: | no |
| Min. depth of the device box: | 40 mm |
Features
HAB
1748-84
Manufacturer
HAN
2CKA001710A3656
GTIN
4011395065778
Number of modules (for modular construction)
1
Surface finish
Glittering
Outlet direction
Straight
Mounting type
Claw/screw fastening
Label field
Without label field
Shielded sockets
No
Color
Suitable for number of sockets/couplings
2
Suitable for protection class (IP)
IP20
Housing shielded
No
Device width
71 mm
Device height
71 mm
Device depth
32 mm
Halogen free
Yes
Lamp terminal
No
Min. depth of the device box
40 mm
With print
No
With bushings/couplings
No
With hinged lid
No
With dust protection
No
With strain relief
No
Mounting type
Flush-mounted
Surface
Untreated
RAL number (similar)
9016
Support ring
Yes
Transparent
No
Use
For data connection housing
Material
Plastic
Material quality
Thermoplastic
Compilation
Control element
