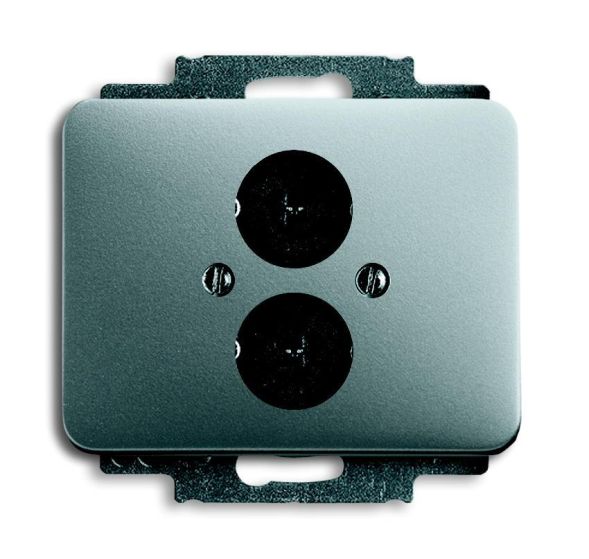

With expansion fastening With 2 loudspeaker connectors. With solder connection. For covering according to DIN 41524, 41529, 45322, 45327, 45328 and 45329 of small sockets and round connectors with screw cap M 16x0.75 (can be installed in base insert).
| Property | Value |
| Mounting type: | Claw/screw fastening |
| Colour: | Titanium |
| Device height: | 71 mm |
| Device width: | 71 mm |
| Device depth: | 32 mm |
| Label field: | without label field |
| Use: | Speaker connection |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | untreated |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | Base element with central cover plate |
| Support ring: | yes |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface finish: | glossy |
| With strain relief: | no |
| Lustre terminal: | no |
| Number of modules (with modular design): | 1 |
| Transparent: | no |
| Outlet direction: | straight |
| With sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 2 |
| Sockets shielded: | no |
| Housing shielded: | no |
| Min. depth of the device box: | 40 mm |
Features
HAB
1751-266
Manufacturer
HAN
2CKA001723A0246
GTIN
4011395006467
Number of modules (for modular construction)
1
Surface finish
Glittering
Outlet direction
Straight
Mounting type
Claw/screw fastening
Label field
Without label field
Shielded sockets
No
Color
Suitable for number of sockets/couplings
2
Suitable for protection class (IP)
IP20
Housing shielded
No
Device width
71 mm
Device height
71 mm
Device depth
32 mm
Halogen free
Yes
Lamp terminal
No
Min. depth of the device box
40 mm
With print
No
With bushings/couplings
No
With hinged lid
No
With dust protection
No
With strain relief
No
Mounting type
Flush-mounted
Surface
Untreated
Support ring
Yes
Transparent
No
Use
Speaker connection
Material
Plastic
Material quality
Thermoplastic
Compilation
Base element with central cover plate
