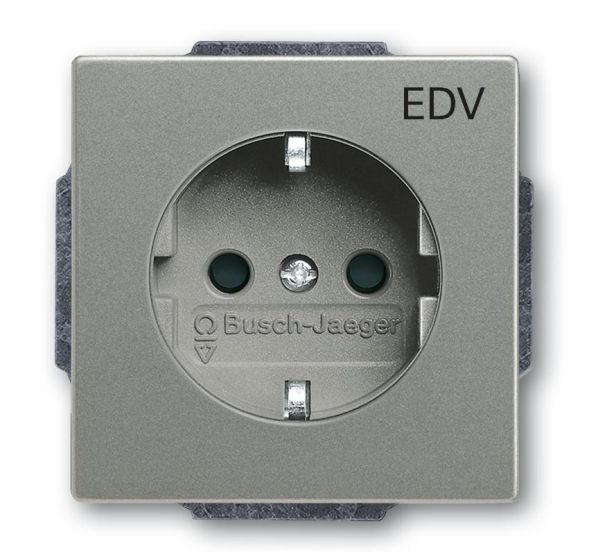

With plug connection. 2-pole (2 P + E) With increased contact protection. SCHUKO® socket insert with red cover, see chapter future® linear. SCHUKO® socket Safety+ with shutter (increased contact protection according to 0620)
Property | Value |
Number of units: | 1 |
Color: | gray |
Suitable for protection class (IP): | IP20 |
Rated voltage: | 250 V |
Rated current: | 16 A |
Lockable: | no |
With increased contact protection: | yes |
With hinged lid: | no |
Mounting type: | Flush-mounted |
Text field/labeling area: | no |
Frequency: | 50 Hz |
Ejection mechanism: | no |
Halogen-free: | yes |
Overvoltage protection: | no |
Residual current protection: | no |
Special power supply: | EDP |
Twisted central insert: | no |
Print/marking: | EDP |
Connection type: | Plug-in terminal |
With Fine-wire fuse: | no |
Mounting type: | claw/screw fastening |
Material: | plastic |
Material quality: | thermoplastic |
Surface: | painted |
Surface finish: | glossy |
Number of modules (with modular construction): | 1 |
Device width: | 12 mm |
Device height: | 32 mm |
Device depth: | 71 mm |
Insulated installation: | yes |
With loop-through function: | yes |
With on/off switch: | no |
With built-in USB power supply: | no |
With function lighting: | no |
With orientation lighting: | no |
Impact resistance: | IK03 |
Transparent: | no |
Protective contact: | yes |
Protective conductor contact round: | no |
Number of active contacts (round): | 2 |
With Signal lamp: | no |
Number of phases: | 1 |
Antibacterial treatment: | no |
Min. depth of device box: | 40 mm |
Features
HAB
20 EUC/DV-803
Manufacturer
HAN
2CKA002013A5462
GTIN
4011395228555
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
1
Number of phases
1
Number of active contacts (approx.)
2
Printing/marking
It
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50Hz
Suitable for protection class (IP)
IP20
Device width
12 mm
Device height
32 mm
Device depth
71 mm
Halogen free
Yes
Insulated installation
Yes
Min. depth of the device box
40 mm
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Painted
Impact resistance
IK03
Protective contact
Yes
Protective conductor contact round
No
Special power supply
It
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
