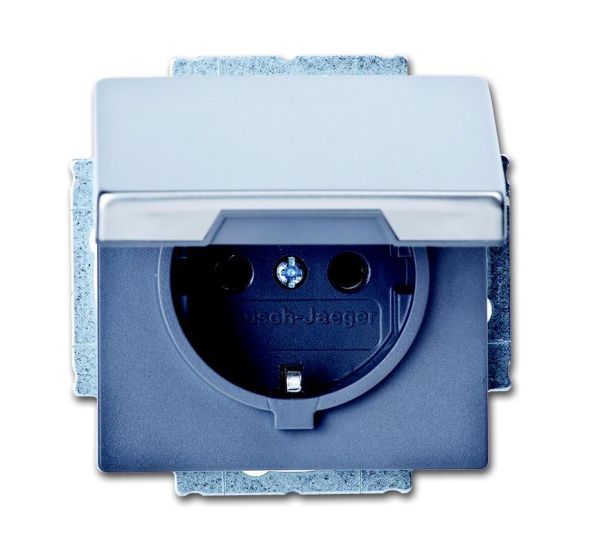

SCHUKO socket insert, stainless steel, pure stainless steel, sockets, SCHUKO socket insert with hinged cover With plug connection. 2-pole (2 P + E) Hinged cover locks in open position. Material: stainless steel Anti fingerprint. Nominal current: 16 A Protection class device: IP 20
| Property | Value |
| Number of units: | 1 |
| Color: | Stainless steel |
| Suitable for protection class (IP): | IP20 |
| Rated voltage: | 250 V |
| Rated current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Metal |
| Material quality: | Stainless steel |
| Surface: | untreated |
| Surface finish: | matt |
| Number of modules (with modular construction): | 1 |
| Device width: | 12 mm |
| Device height: | 32 mm |
| Device depth: | 71 mm |
| Insulated installation: | yes |
| With Loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK03 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 40 mm |
Features
HAB
20 EUK-866
Manufacturer
HAN
2CKA002018A1490
GTIN
4011395087541
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
1
Number of phases
1
Number of active contacts (approx.)
2
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50Hz
Suitable for protection class (IP)
IP20
Device width
12 mm
Device height
32 mm
Device depth
71 mm
Halogen free
Yes
Insulated installation
Yes
Min. depth of the device box
40 mm
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Untreated
Impact resistance
IK03
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Metal
Material quality
Stainless steel
Overvoltage protection
No
