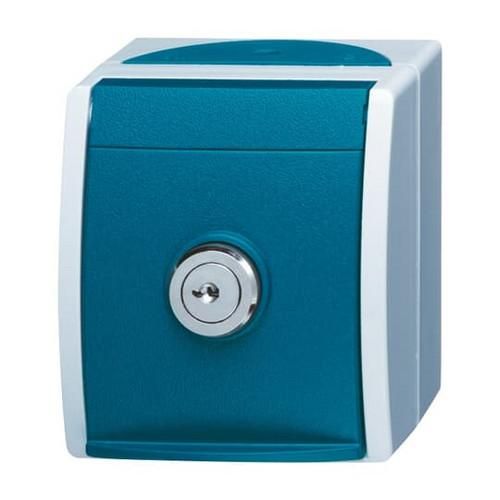

With plug connection. With security lock in the hinged lid. 2 P + E, standard lock with 2 identical keys. Cannot be unscrewed or removed when locked. Can be labeled with label holder 1763-53. Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de.
| Property | Value |
| RAL number (similar): | 7035 |
| Number of units: | 1 |
| Color: | blue |
| Suitable for protection class (IP): | IP44 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | yes |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Surface-mounted |
| Text field/labeling area: | yes |
| Frequency: | 50 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With Fine-wire fuse: | no |
| Mounting type: | Mounting with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Number of modules (with modular design): | 1 |
| Device width: | 83 mm |
| Device height: | 55 mm |
| Device depth: | 74 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK04 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With Signal lamp: | yes |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
HAB
20 EWSL-101-53
Manufacturer
HAN
2CKA002083A0823
GTIN
4011395993279
Lockable
Yes
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
1
Number of phases
1
Number of active contacts (approx.)
2
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Fastening with screw
Color
Residual current protection
No
Frequency
50Hz
Suitable for protection class (IP)
IP44
Device width
83 mm
Device height
55 mm
Device depth
74 mm
Halogen free
Yes
Insulated installation
Yes
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
Yes
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Surface-mounted
Nominal voltage
250V
Rated current
16A
Surface
Untreated
RAL number (similar)
7035
Impact resistance
IK04
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
Yes
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
