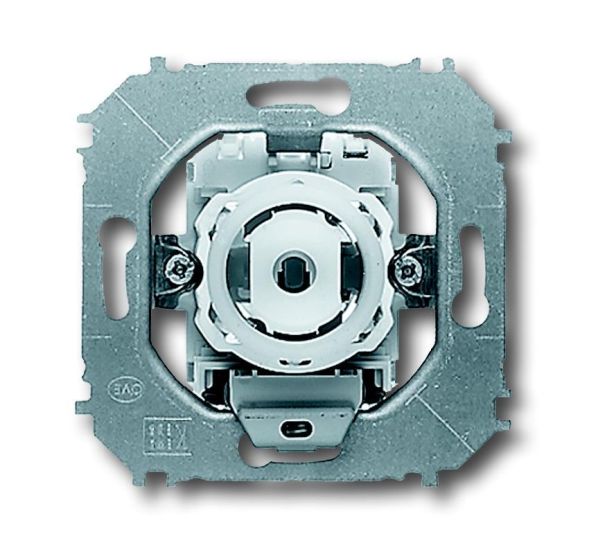

With glow lamp. Suitable for impuls central plate with actuation button. Only in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, install or Busch-Jaeger item no. 3040 flush-mounted box for masonry, 3050 flush-mounted box for hollow walls or 3060 flush-mounted box for concrete) Control lamp for replacement 8305. Light ring cannot be illuminated.
| Property | Value |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Circuit type: | 2-pole switch |
| Operating type: | Rocker/button |
| Number of actuating rockers: | 1 |
| Mounting type: | Flush-mounted |
| Push button: | yes |
| Composition: | Basic element |
| Fastening type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 1013 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 10 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | Plug-in terminal |
| Lighting: | yes |
| Lighting type: | Incandescent lamp |
| Lighting function: | Control and orientation |
| Rated current: | 10 A |
| Installation depth: | 32 mm |
| Device depth: | 71 mm |
| Device width: | 71 mm |
| Device height: | 32 mm |
| With mounting plate: | yes |
| Text field/labeling area: | no |
| Min. depth of the device box: | 32 mm |
Features
Feedback contact
No
Number of actuating rockers
1
Circuit type
Switch 2-pole
Lighting
Yes
Switching current for fluorescent lamps
10 AX
Push button
Yes
Washing machine switch
No
Lighting function
Control and orientation
HAB
2001/2 UKGL-101
Manufacturer
HAN
2CKA001022A0623
GTIN
4011395644904
Connection type
Plug-in terminal
Surface finish
Frosted
Operating mode
Rocker/Button
Mounting type
Claw/screw fastening
Rated current
10A
Installation depth
32 mm
Color
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
32 mm
Device depth
71 mm
Halogen free
Yes
Min. depth of the device box
32 mm
With mounting plate
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
RAL number (similar)
1013
Text field/label area
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Basic element
