Description

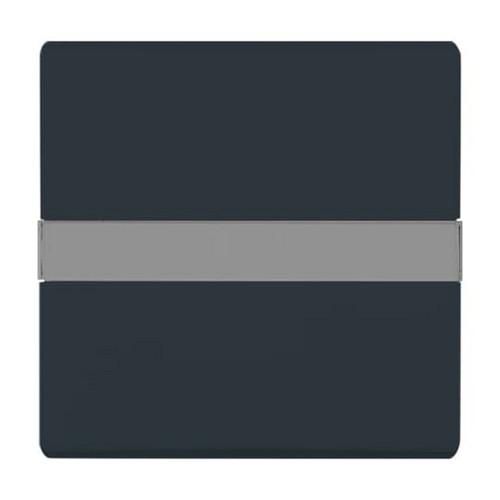

Rocker, anthracite, flush-mounted, water-protected, special plug-in devices, covers for switches/buttons, rocker with labelling field, labelling field 66, 7 x 10 mm. As a cover for flush-mounted switch, changeover switch, cross switch and button. Can be screwed on (holding element). Supplied with sealing ring. IP 44 only in conjunction with Allwetter 44 frame. Device protection class: IP 44
| Property | Value |
| Design: | one-piece rocker |
| Use: | Switch/button |
| Mounting type: | Screw fastening |
| Suitable for bus system button connection: | no |
| Suitable for protection class (IP): | IP44 |
| Color: | anthracite |
| Halogen-free: | yes |
| Control window/light outlet: | no |
| Material: | plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 7021 |
| With label field: | yes |
| With replaceable lens/symbol: | no |
| Scannable symbol/barrier-free: | no |
| Impact resistance: | IK03 |
Features
Insert Module Type
Light switch covers
Color
Anthracite
HAB
2106 N-35
Manufacturer
HAN
2CKA001731A1718
GTIN
4011395873700
Tactile symbol/barrier-free
No
Version
Surface finish
Glittering
Mounting type
Screw fastening
Color
Suitable for outdoor use
No
Suitable for bus system button coupling
No
Suitable for protection class (IP)
IP44
Halogen free
Yes
Inspection window/light outlet
No
With label field
Yes
With interchangeable lens/symbol
No
Surface
Untreated
RAL number (similar)
7021
Impact resistance
IK03
Use
Switch button
Material
Plastic
Material quality
Thermoplastic
