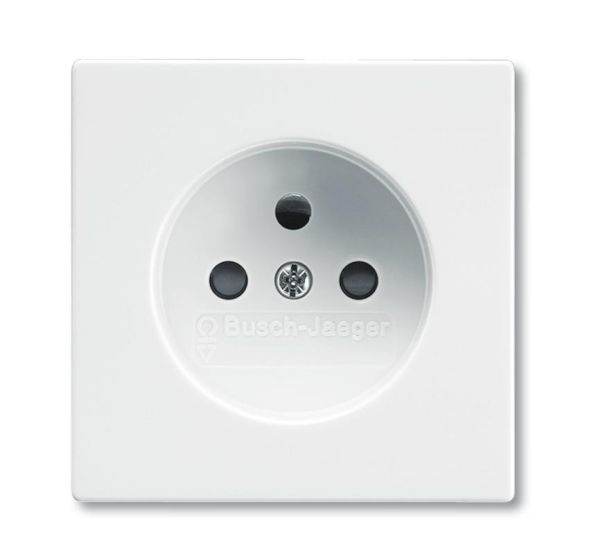

Socket cover, studio white, flush-mounted, water-protected, special plug devices, sockets, socket cover with increased contact protection for socket insert 23 M-504.
| Property | Value |
| Version: | other |
| Protective contact: | no |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| With built-in USB power supply: | no |
| Number of units: | 1 |
| Number of modules (with modular design): | 1 |
| Number of phases: | 1 |
| Print/marking: | without print |
| Connection type: | screw terminal |
| With hinged lid: | no |
| With increased contact protection: | no |
| Text field/labeling area: | no |
| Color: | white |
| RAL number (similar): | 9016 |
| Transparent: | no |
| Lockable: | no |
| Ejection mechanism: | no |
| Insulated installation: | yes |
| With functional lighting: | no |
| With orientation lighting: | no |
| Overvoltage protection: | no |
| Residual current protection: | no |
| With fine fuse: | no |
| Special power supply: | without special power supply |
| Mounting type: | Flush-mounted |
| Fastening type: | Fastening with screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | glossy |
| Antibacterial treatment: | no |
| With on/off switch: | no |
| With loop-through function: | yes |
| Twisted central insert: | no |
| Rated current: | 16 |
| Rated voltage: | 250 |
| Frequency: | 50 |
| Suitable for protection class (IP): | IP20 |
| For 'difficult conditions' (according to VDE): | no |
| Impact resistance: | IK03 |
| Device width: | 71 |
| Device height: | 12 |
| Device depth: | 32 |
| Min. depth of device box: | 40 |
Features
HAB
2399 UCKS-84
Manufacturer
HAN
2CKA002099A0214
GTIN
4011395068489
Lockable
No
Connection type
Screw terminal
Antibacterial treatment
No
Number of Units
1
Number of phases
1
Printing/marking
Without imprint
Version
Other
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Fastening with screw
Color
Residual current protection
No
Frequency
50
Device width
71
Device height
12
Device depth
32
Halogen free
Yes
Insulated installation
Yes
Min. depth of the device box
40
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Flush-mounted
Nominal voltage
250
Rated current
16
Surface
Untreated
Impact resistance
IK03
Protective contact
No
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
