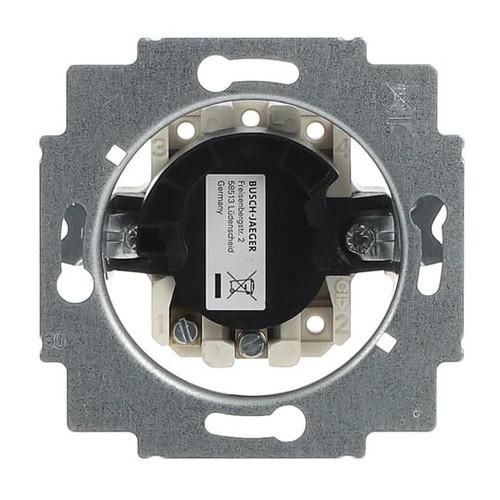

Key switch insert, flush-mounted installation boxes and inserts, inserts for flush-mounted switch programs, key switch insert switching off, 1-pole for profile half cylinder. In the on and off state, the key can be removed in the middle position. Delivery without locking cylinder. Nominal current: 10 AX Protection class device: IP 20 IEC60669-1, British Standard EN 60669-1
| Property | Value |
| Color: | white |
| Suitable for protection class (IP): | IP20 |
| Circuit type: | other |
| Operation type: | key |
| Mounting type: | flush-mounted |
| Push button: | no |
| Composition: | base element |
| Mounting type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | Duroplast |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 1013 |
| Nominal voltage: | 250 V |
| Switching current for fluorescent lamps: | 10 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | Plug-in terminal |
| Lighting: | no |
| Lighting function: | other |
| Rated current: | 10 A |
| Installation depth: | 32 mm |
| Device depth: | 71 mm |
| Device width: | 71 mm |
| Device height: | 32 mm |
| With mounting plate: | yes |
| Text field/labeling area: | no |
| Min. depth of device box: | 32 mm |
Features
Feedback contact
No
Circuit type
Other
Lighting
No
Switching current for fluorescent lamps
10 AX
Push button
No
Washing machine switch
No
Lighting function
Other
HAB
2733 USL-101
Manufacturer
HAN
2CKA001101A0914
GTIN
4011395861400
Connection type
Plug-in terminal
Surface finish
Frosted
Operating mode
Key
Mounting type
Claw/screw fastening
Rated current
10A
Installation depth
32 mm
Color
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
32 mm
Device depth
71 mm
Halogen free
Yes
Min. depth of the device box
32 mm
With mounting plate
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Surface
Untreated
RAL number (similar)
1013
Text field/label area
No
Material
Plastic
Material quality
Duroplast
Compilation
Basic element
