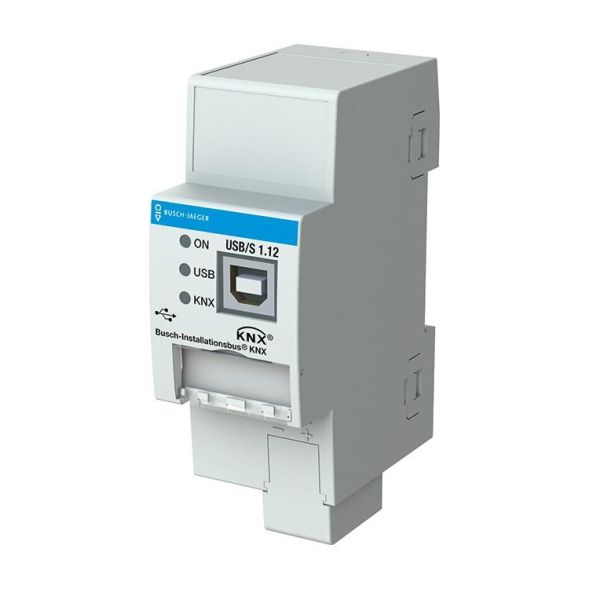

For connecting a PC to the KNX. The bus connection is made via the included bus terminal. Supports group and bus monitor and KNX long frames for faster programming. If required, please refer to the current online catalog for the software and description. 1 TE 18 mm.
| Property | Value |
| Mounting type: | REG |
| Color: | gray |
| Version: | USB |
| Width in modular units: | 2 |
| Protection class (IP): | IP20 |
| KNX bus system: | yes |
| Max. Transmission rate: | 9600 Bd |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Bus system radio bus: | no |
| Bus system Powernet: | no |
| Bus system LON: | no |
| With bus connection: | yes |
| With label field: | yes |
| With LED display: | yes |
| Bidirectional radio: | no |
| Transparent: | no |
| KNX radio bus system: | no |
Features
HAB
USB/S1.12 REG
Manufacturer
HAN
2CDG110243R0021
GTIN
4016779064613
Version
USB
Surface finish
Frosted
Width in pitch units
2
Bus system radio bus
No
KNX bus system
Yes
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
Color
Radio bidirectional
No
With label field
Yes
With bus connection
Yes
With LED display
Yes
Mounting type
REG
Surface
Untreated
IP protection)
IP20
Transparent
No
Material
Plastic
Material quality
Thermoplastic
