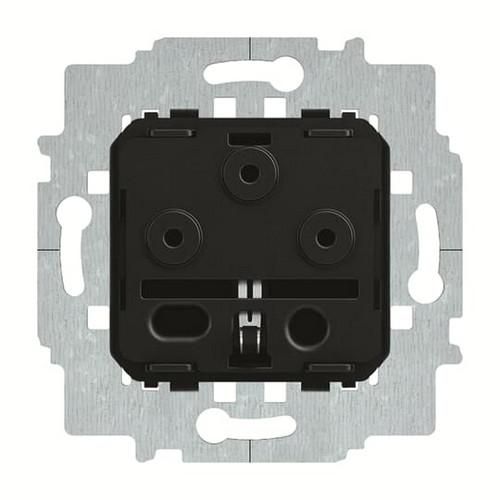

13.56 MHz RFID standard ISO/IEC 14443 and ISO/IEC 15693. Status display via fiber optic cable. 2 contacts with configurable run-on time. Only in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, install or Busch-Jaeger item no. 3040 flush-mounted box for masonry, 3050 flush-mounted box for hollow walls or 3060 flush-mounted box for concrete).
| Property | Value |
| Color: | black |
| Version: | Single button |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Hotel card |
| Mounting type: | other |
| Halogen-free: | yes |
| Text field/labeling area: | no |
| Composition: | Basic element |
| Feedback contact: | no |
| With lighting: | yes |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9005 |
| Nominal voltage: | 230 V |
| Print: | other |
| Rated current: | 16 A |
| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 32 mm |
| Number of poles: | 1 |
| Transparent: | no |
| Antibacterial treatment: | no |
| With signal lamp: | yes |
| Min. depth of device box: | 40 mm |
Features
Feedback contact
No
With lighting
Yes
HAB
2025 RFID U
Manufacturer
HAN
2CKA001012A2242
GTIN
4011395285169
Antibacterial treatment
No
Imprint
Other
Version
Surface finish
Frosted
Operating mode
Hotel card
Mounting type
Claw/screw fastening
Rated current
16A
Color
Suitable for outdoor use
No
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
71 mm
Device depth
32 mm
Halogen free
Yes
Min. depth of the device box
40 mm
With signal lamp
Yes
Mounting type
Other
Nominal voltage
230V
Surface
Untreated
Number of poles
1
RAL number (similar)
9005
Text field/label area
No
Transparent
No
Material
Plastic
Material quality
Thermoplastic
Compilation
Basic element
