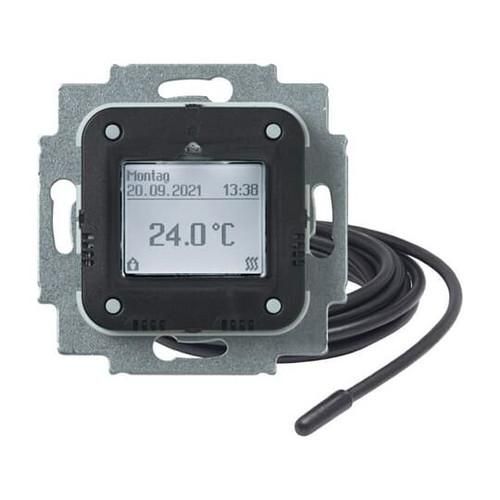

Electronic room temperature controller with setpoint display, timer and remote sensor With remote sensor. For underfloor heating. Switching contact, non-potential - opens when the set temperature is reached. Simple setting via illuminated, menu and text-guided display. Up to 4 switching times per day can be freely set for each day of the week. Switching between setpoint and actual temperature display possible. With screw fastening. Automatic summer/winter time changeover can be set. Sensor length: 4 m. Sensor = NTC, 10 kiloohms at 25 degrees C. Power reserve > 10 years Temperature controller class: IV Contribution to room heating energy efficiency: 2.0%. Nominal current: 16 A Device temperature range: 5 °C - 30 °C Only install in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073. Control valves in the 'normally closed' version are required for the controller. E.g. article no. 6164/10-102.
Property | Value |
Color: | black |
Type of power supply: | 230 V |
Connection: | three-/four-wire |
With receiver: | no |
External sensor: | yes |
With thermal feedback: | yes |
Control characteristics: | P |
Heating: | yes |
Number of heating outputs: | 1 |
Selector switch for heating and hot water with heating: | no |
Sensor/probe design: | Resistance sensor |
Temperature readable: | yes |
With display: | yes |
Clock type: | Weekly clock |
Clock design: | digital |
Overtime switch: | no |
Optimization: | yes |
With drinking water circuit: | no |
Operation: | Button |
Weather-dependent control: | no |
Number of Switching programs: | 28 |
Max. Contact load: | 16 A |
Protection class (IP): | IP21 |
Protection class (NEMA): | 2 |
Explosion-proof: | no |
RAL number: | 9005 |
Width: | 71 mm |
Depth: | 37.8 mm |
Height: | 71 mm |
Temperature controller class: | II |
Power consumption in standby mode (solstandby): | 0.05 W |
