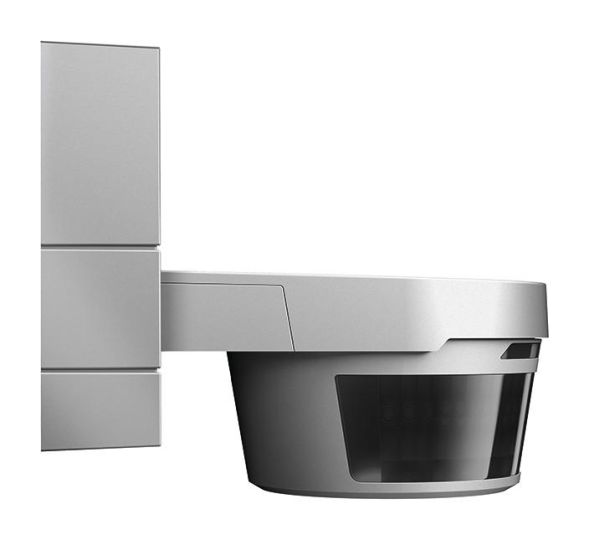

Busch-Wächter 220 MasterLINE KNX, silver metallic, Busch-Installationsbus KNX, presence detector, Busch-Wächter AP, Busch-Wächter 220 MasterLINE KNX With 2 motion channels. With 1 twilight channel with 3 switching thresholds. Not remotely controllable via IR handheld transmitter KNX. With integrated KNX bus coupler. No additional auxiliary voltage required. Monitoring density: 92 sectors with 368 switching segments. Twilight sensor: approx. 1-1000 lux Switch-off delay: approx. 10 sec. to 1092 min Sensor angle: 220° Range: 16 m Control elements: 2 adjustment potentiometers Connections: KNX line: bus connection terminal Detection range: front: 16 m, side: 16 m Opening angle: 220 ° Brightness limit: 1 lux - 1000 lux Installation height: 2.5 m Protection class (device): IP 55 Temperature range (device): -25 °C to 55 °C Dimensions (H x W x D): 115 mm x 125 mm x 141 mm
| Property | Value |
| Number of channels: | 2 |
| Optimal installation height: | 2.5 m |
| Color: | Silver |
| Design: | Motion detector |
| Mounting type: | Surface-mounted |
| KNX bus system: | yes |
| Max. range to one side: | 16 m |
| Max. range frontal: | 16 m |
| Horizontal detection angle: | 220 ° |
| Min. Duty cycle: | 10 s |
| Max. Duty cycle: | 1092 min |
| Detection field diameter on floor: | 16 m |
| Response brightness adjustable: | yes |
| Teach function for response brightness: | yes |
| Self-learning switch-off delay: | no |
| Radio bus system: | no |
| LON bus system: | no |
| Powernet bus system: | no |
| Other bus systems: | without |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| With bus connection: | no |
| Extension input: | yes |
| Crawl-under protection/rear field monitoring: | yes |
| Animal corridor: | yes |
| Staircase monitoring: | yes |
| Transparent: | no |
| KNX radio bus system: | no |
| Radio bidirectional: | no |
| Mode switch: | no |
