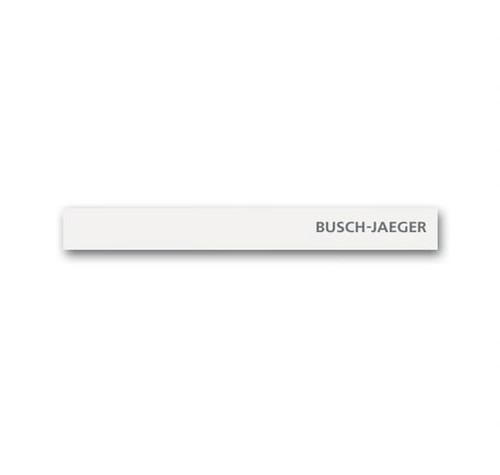

Bottom end strip with temperature sensor and lettering, studio white, Busch-Powernet KNX, Busch-priOn control elements, bottom end strip with temperature sensor and Busch-priOn lettering. Lower end strip for mounting on base supports 1-way to 3-way (6346/10-101, 6346/11-101 and 6346/12-101). Provides the value measured via the integrated temperature sensor for the 8.89 cm display (6344-xxx-101) or the room temperature controllers 6124-xxx-10x, 6128-xxx-10x, 6108/0x and the room temperature controller 6351/08-xxx. Cannot be combined with flush-mounted actuators (6354 U, 6355 U, 6356 U and 6920/40). Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate etc.). Protection class device: IP 20 Temperature range device: -5 °C to 45 °C Dimensions (H x W x D): 12.5 mm x 106.6 mm x 15.5 mm
| Property | Value |
| Mounting type: | Flush-mounted |
| Protection class (IP): | IP20 |
| KNX bus system: | yes |
| Radio bus system: | no |
| Color: | white |
| LON bus system: | no |
| Powernet bus system: | no |
| Other bus systems: | without |
| With bus connection: | no |
| RAL number (similar): | 9016 |
| Bus system KNX radio: | no |
