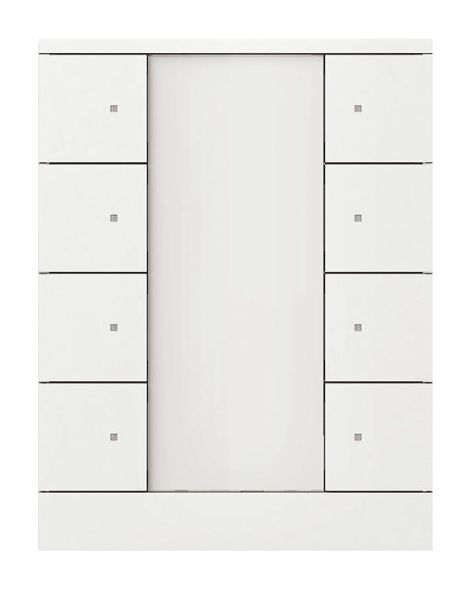

8-way control element, studio white, Busch installation bus KNX, Busch-Sentio, 8-way control element, multifunction/color concept With integrated KNX bus coupler. With labeling field. Support of KNX functions through innovative color concept (yellow=lighting, blue=blinds, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. Button function: switching/dimming/blinds/sending value/light scenes etc. With integrated temperature sensor. Control elements: left/right pushbutton contacts Display elements: LED to display the switching status Connections: KNX line: bus connection terminal Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 116 mm x 90 mm x 13 mm
| Property | Value |
| KNX bus system: | yes |
| Protection class (IP): | IP20 |
| Mounting type: | Flush-mounted |
| Number of actuation points: | 8 |
| Radio bus system: | no |
| With display: | no |
| With room thermostat: | no |
| With bus connection: | yes |
| Color: | white |
| Powernet bus system: | no |
| With infrared sensor: | no |
| LON bus system: | no |
| With anti-theft/dismantling protection: | yes |
| With LED display: | yes |
| With labeling field: | yes |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9016 |
| Transparent: | no |
| Bus system KNX radio: | no |
| Bidirectional radio: | no |
