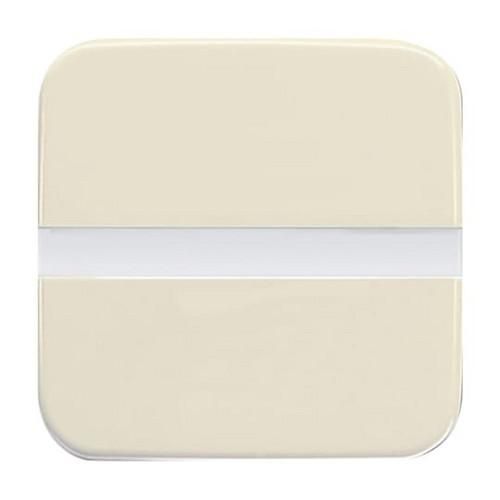

Busch-Jaeger 2CKA006800A2877 64765-212 flex with orientation light comfort switch

Motion detector pushbutton switch combination. For brightness and motion-dependent switching of lighting. Pushbutton switch function possible at any time. Detection with animal path. With indication LED when manual operation is required. Compatible with all flex inserts. Adjustment elements on the back. 2 controls for setting the brightness switching threshold and run-on time. Extension of the detection area through main unit/extension unit combinations. Additional on/off option via button input on the flush-mounted insert. Adjustable operating mode: automatic operation, automatic (motion-controlled) switching on and off. Adjustable operating mode: semi-automatic, manual switching on, automatic (time and motion-controlled) switching off. Adjustable operating mode: automatic switching on, automatic switching on, manual switching off. With continuous light / continuous off function. Monitoring density: 9 sectors with 28 switching segments. Switch-off delay: approx. 1 min. - 10 min. adjustable. For relay insert flex, 1-way, 64811 U. For e-contact insert flex, 1-way, 64814 U. For relay insert flex, 2-way, 64821 U. For LED touch dimmer insert flex, 1-way, 64851 U. For extension insert flex, 64891 U. Installation height: 21 mm. Please order the corresponding flush-mounted insert separately. The range information refers to an ambient temperature of 21 °C.
