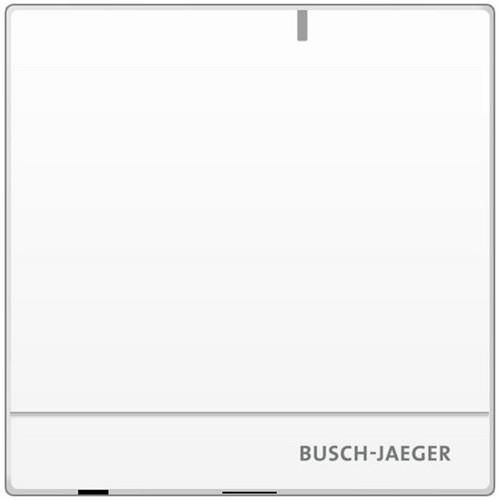

Used to distribute the radio signal across floors. Up to 16 cylinders can be linked to each gateway. Up to 64 RF/IP gateways can be integrated into the Smart Access Point. Radio range (open field): 10 m. The radio range can be extended by using the RF repeater (item no. D04021-0x). Further details on the system structure can be found in the system manual. LED status display. Power supply: POE or 24V external supply. Installation type: surface-mounted. Can be installed in combination with built-in and device sockets. Device protection class: IP 30. Device temperature range: -10 °C - 45 °C. Dimensions (H x W x D): 109 mm x 107 mm x 30 mm.
| Property | Value |
| KNX bus system: | no |
| Radio bus system: | no |
| LON bus system: | no |
| Powernet bus system: | no |
| Other bus systems: | without |
| With bus connection: | no |
| With LED display: | no |
| KNX radio bus system: | no |
Features
HAB
D04031-03
Manufacturer
HAN
2TMA400260W0015
GTIN
6955891816664
Other bus systems
Without
Bus system radio bus
No
KNX bus system
No
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
With bus connection
No
With LED display
No
