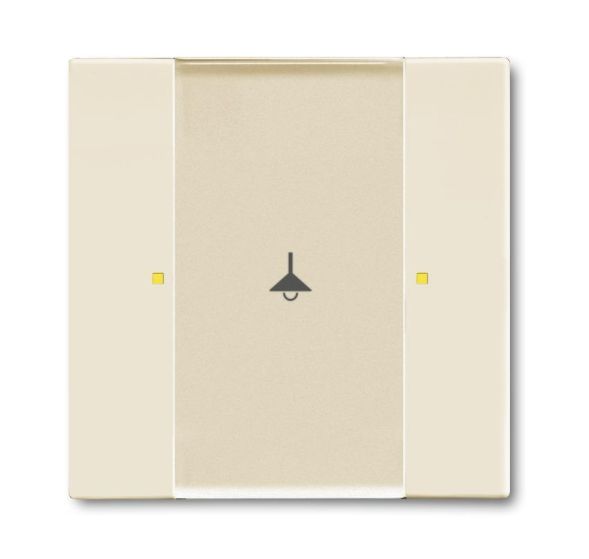

Control element, 1/2-way, ivory white, Busch-Powernet KNX, control elements solo, control element, 1/2-way multifunction/color concept For Busch-Installationbus KNX 6120/12-101, 6120/13 and Busch-Powernet KNX 6920/12, 6920/13 and 6920/40. With labeling field. Support of KNX functions through innovative color concept (yellow=lighting, blue=blinds, orange=RTR, magenta=scene and white=neutral/no function assignment) or standard lighting red/green. Button function: switching/dimming/blinds/sending value/light scenes etc. Transparent labeling sheet with standard symbols included in delivery. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gate etc.). Control elements: Push buttons left/right Display elements: LED to display the switching status Protection class device: IP 20 Temperature range device: -5 °C to 45 °C Dimensions (H x W x D): 63 mm x 63 mm
| Property | Value |
| KNX bus system: | yes |
| Protection class (IP): | IP20 |
| Mounting type: | Flush-mounted |
| Number of actuation points: | 2 |
| Radio bus system: | no |
| With display: | no |
| With room thermostat: | no |
| With bus connection: | no |
| Number of buttons: | 4 |
| Color: | white |
| Bus system Powernet: | no |
| With infrared sensor: | no |
| Bus system LON: | no |
| Other bus systems: | without |
| With theft/dismantling protection: | yes |
| With LED display: | no |
| With label field: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Design of the Surface: | glossy |
| RAL number (similar): | 1013 |
| KNX radio bus system: | no |
| Min. depth of the device box: | 33 mm |
