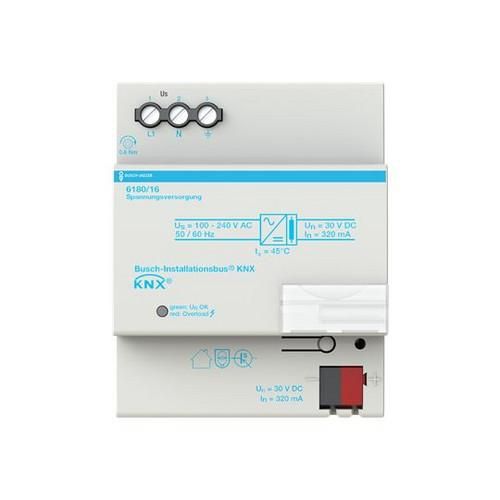

KNX power supply 320 mA, Busch installation bus KNX, system components/accessories, KNX power supply 320 mA The bus connection is made via the enclosed bus terminal. Display elements: Operating displays via LEDs Connections: KNX line: Bus connection terminal Nominal voltage: , +10 % / -15 % Secondary: , +1 V / -2 V Nominal frequency: 50 Hz/60 Hz Outputs: 1x short-circuit proof Nominal current: 320 mA Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 90 mm x 72 mm x 64 mm Pitch unit: 4 TE
| Property | Value |
| Mounting type: | REG |
| Max. Output current: | 320 mA |
| Width in division units: | 4 |
| Number of integrated chokes: | 1 |
| Number of supplyable lines: | 1 |
| Bus voltage bufferable: | no |
| KNX bus system: | yes |
| Radio bus system: | no |
| Powernet bus system: | no |
| LON bus system: | no |
| With LED display: | yes |
| Bus system KNX radio: | no |
Features
HAB
6180/16
Manufacturer
HAN
2CKA006180A0026
GTIN
4011395156131
Width in pitch units
4
Bus system radio bus
No
KNX bus system
Yes
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
With LED display
Yes
Mounting type
REG
