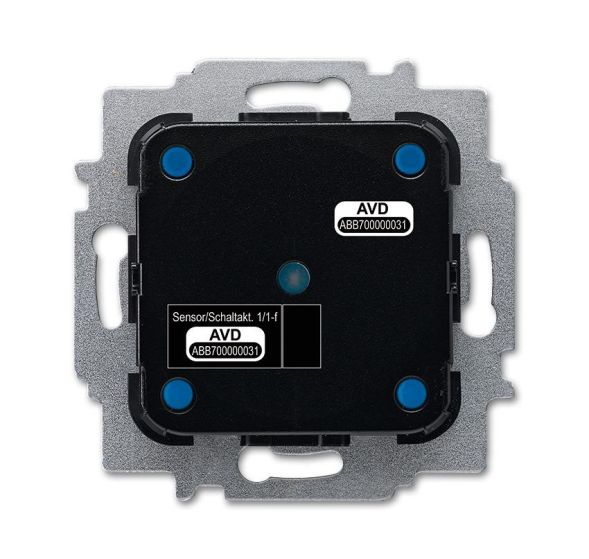

Sensor/switch actuator 1/1-way, wireless, Busch-free@home, sensor/actuator combinations, wireless, sensor/switch actuator 1/1-way, wireless for Busch-free@home For switching 230 V~ consumers. Communication with the free@home system is wireless. With integrated switching actuator. Switching function is also available without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). For contacting 1-way rocker switches 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx and 6234-10-xxx. 3-wire connection technology (neutral conductor required). With 230 V extension input (on/off). With spreader fastening Control elements: Push-button contacts top/bottom Display elements: LED as orientation light or to display the switching status Nominal frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: ohmic Nominal current: 10 A Output voltage: 230 V~ Nominal power: 2300 W Load type: capacitive Nominal current: 10 AX Nominal power: 2300 VA Load type: inductive Nominal current: 10 A Nominal power: 2300 VA Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 71 mm x 71 mm x 45 mm Installation depth: 32 mm
| Property | Value |
| Max. number of switching outputs: | 1 |
| Mounting type: | Flush-mounted |
| Protection class (IP): | IP20 |
| Max. Switching capacity: | 2300 W |
| KNX bus system: | no |
| Radio bus system: | yes |
| Powernet bus system: | yes |
| With bus connection: | yes |
| LON bus system: | yes |
| Other bus systems: | free@home |
| On-site/manual operation: | yes |
| With LED display: | yes |
| Rated current: | 10 A |
| Rated operating voltage: | 230 V |
| Different phases can be connected: | yes |
| Modular expansion option: | no |
| KNX radio bus system: | yes |
| Bidirectional radio: | yes |
| Removable bus module: | no |
| Min. depth of device box: | 32 mm |
