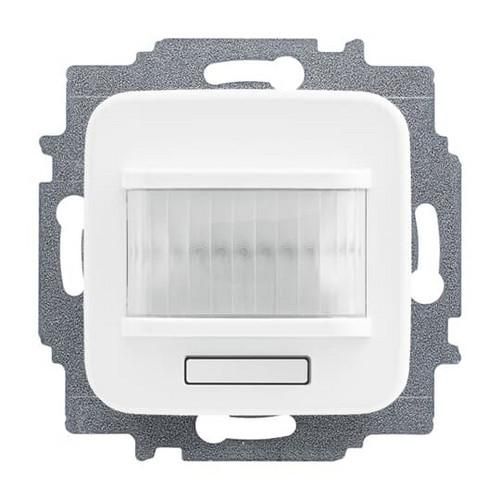

Motion detector/switching actuator 1-way, wireless, alpine white, Busch-free@home, sensor/actuator combinations, wireless, motion detector/switching actuator 1-way, wireless for Busch-free@home With select lens for detection with animal paths. Communication with the free@home system is wireless. For automatically switching Busch-free@home actuators depending on movement and brightness. The actuator's run-on time can be programmed via the system access point's web interface. For switching 230 V~ consumers. With integrated switching actuator. Switching function is also available without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). 3-wire connection technology (neutral conductor required). With 230 V extension input (on/off). With spreader fastening Rated frequency: 50 Hz/60 Hz Outputs: 1x normally open contact, non-floating Load type: ohmic Rated current: 10 A Output voltage: 230 V~ Rated power: 2300 W Load type: capacitive Rated current: 10 AX Rated power: 2300 VA Load type: inductive Rated current: 10 A Rated power: 2300 VA Detection range: front: 6 m, side: 3 m Opening angle: 180 ° Brightness limit: 1 lux - 500 lux Installation height: 1.1 m - 1.3 m Protection class (device): IP 20 Temperature range (device): -5 °C to 45 °C Dimensions (H x W x D): 71 mm x 71 mm x 53 mm Installation depth: 32 mm Installation position: vertical
| Property | Value |
| Optimal installation height: | 1.2 m |
| Color: | white |
| Design: | motion detector |
| Installation type: | flush-mounted |
| KNX bus system: | no |
| Max. range to one side: | 3 m |
| Max. range frontal: | 6 m |
| Horizontal detection angle: | 180 ° |
| Switching capacity: | 2300 W |
| Min. Duty cycle: | 30 s |
| Max. Duty cycle: | 30 min |
| Vertical detection angle: | 19 ° |
| Response brightness adjustable: | yes |
| Radio bus system: | yes |
| LON bus system: | yes |
| Powernet bus system: | yes |
| Other bus systems: | free@home |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | glossy |
| RAL number (similar): | 9010 |
| With bus connection: | yes |
| Animal corridor: | yes |
| Staircase monitoring: | yes |
| KNX radio bus system: | yes |
| Bidirectional radio: | yes |
| Min. depth of the device box: | 32 mm |
