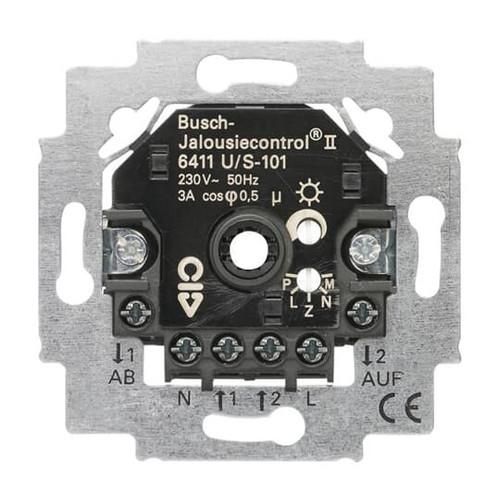

Busch-Jalousiecontrol II insert, flush-mounted mounting boxes and inserts, inserts for blind control/timers, Busch-Jalousiecontrol II insert Suitable for roller shutter, blind and awning drives with mechanical or electronic limit switch-off. With two 230 V extension inputs (up/down) for group control. Possibility of connecting brightness sensor 6414-101 and glass break detector 6413. With operating mode switch for operating modes: normal, slat, central, position, awning. With party function (deactivation of the local control point) in combination with Busch-Jalousiecontrol II control element 6430-xx-xxx, 6066-xx-xxx. Wind alarm, cleaning function can be implemented via extension input. For control element 6430-xx-xxx. For IR control element 6066-xx-xxx. For comfort timer control element 6455-101. Running time: 3 min Rated voltage: , +10 % / -10 % Rated frequency: 50 Hz Outputs: 2x normally open contacts Rated current: 3 A, at cos 0.5 Rated power: 690 VA Control/signal outputs: 2 Temperature range device: 0 °C to 35 °C
| Property | Value |
| Frequency: | 50 Hz |
| Suitable for protection class (IP): | IP20 |
| Mounting type: | Flush-mounted |
| Composition: | Basic element |
| With brightness sensor connection: | yes |
| With glass break detector connection: | yes |
| Extension input: | yes |
| Lock-out protection: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | glossy |
| Color: | other |
| Max. switching capacity: | 690 W |
| Nominal voltage: | 230 V |
| Mounting type: | screw fastening |
